10 Bolt Radius Rod Plate with Tow Loop For Can-Am Maverick X3 (2022+) – Elektric

Description

High-horsepower side-by-sides are built to tackle brutal terrains, but aggressive riding can expose weak points in factory setups. The rear chassis of the Can-Am Maverick X3 is highly vulnerable to extreme torsional loads, which can bend radius rod bolts, distort mounting holes, or lead to catastrophic frame failure.

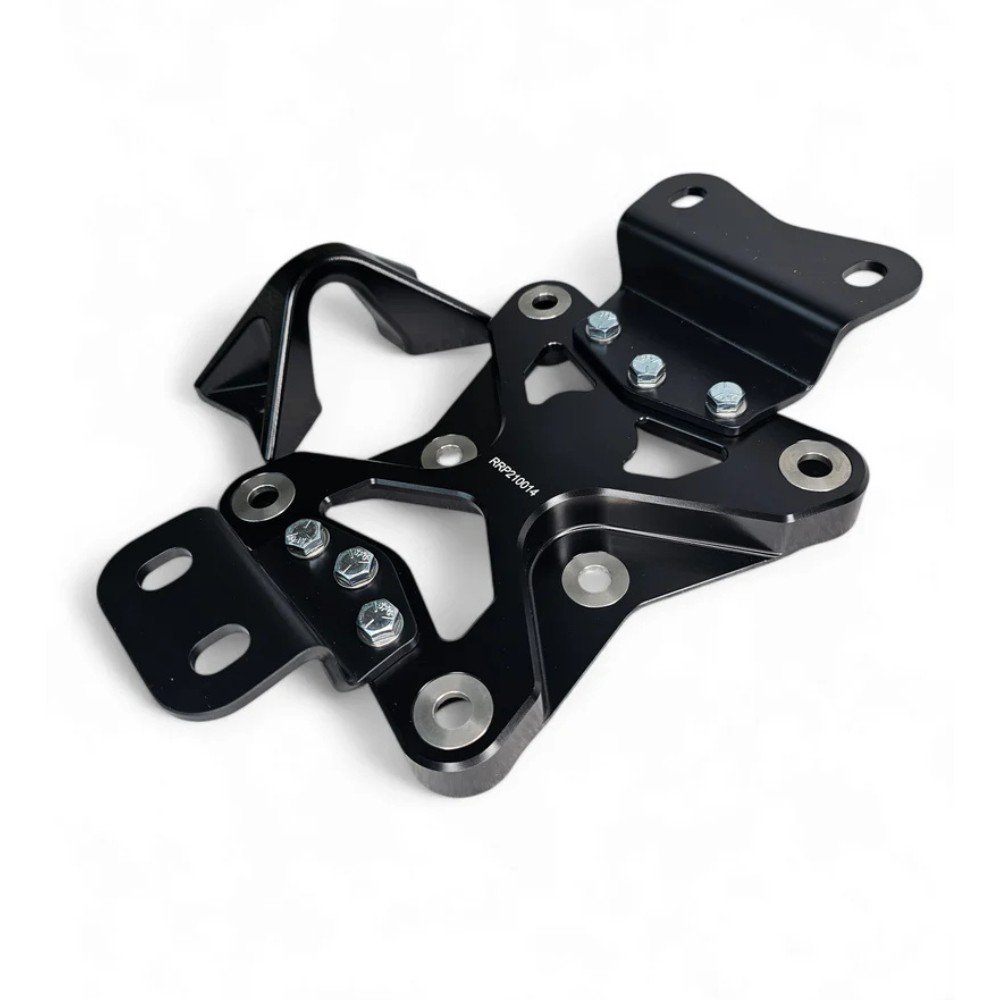

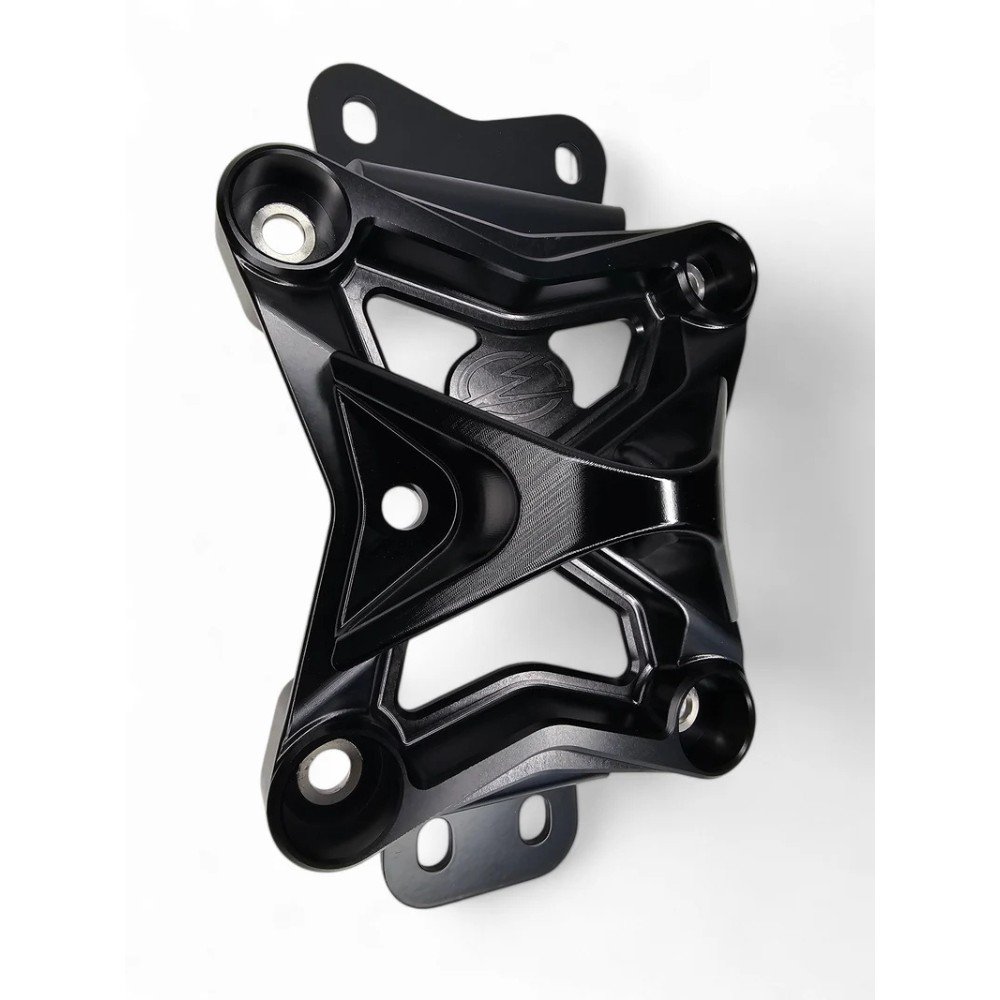

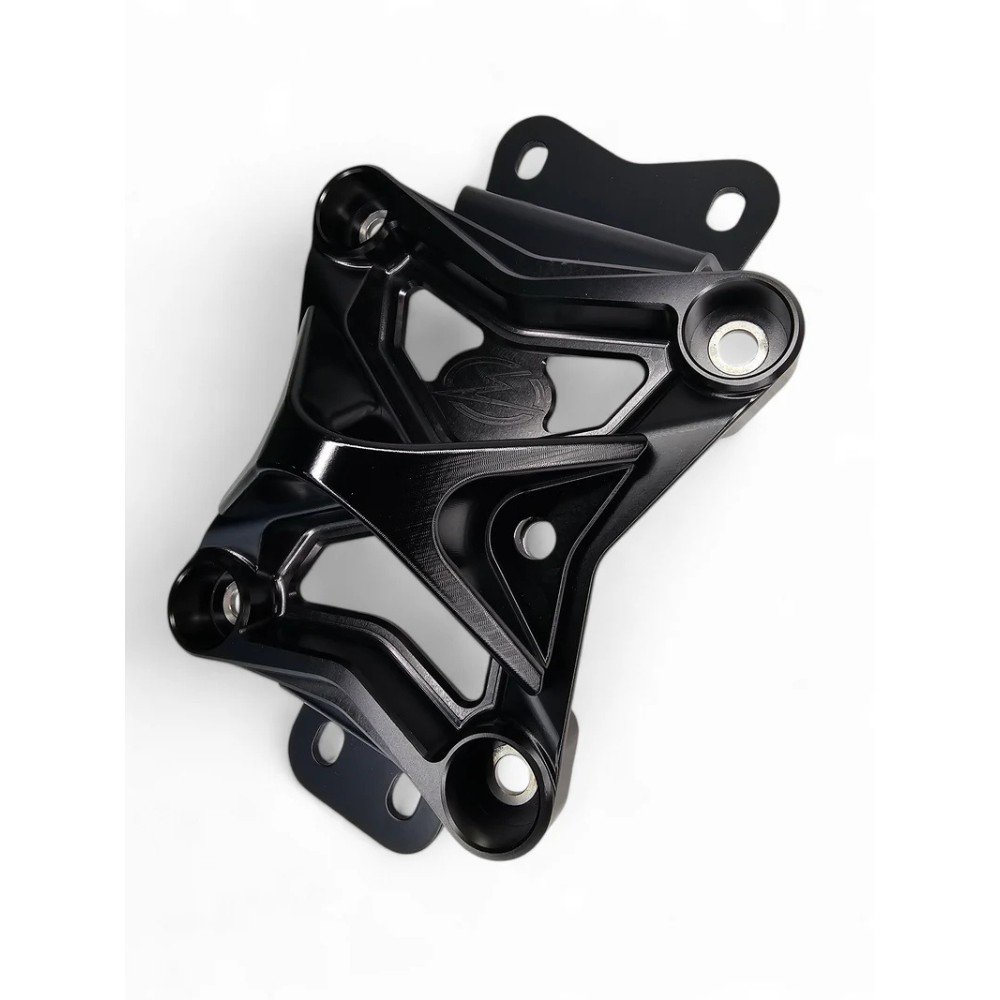

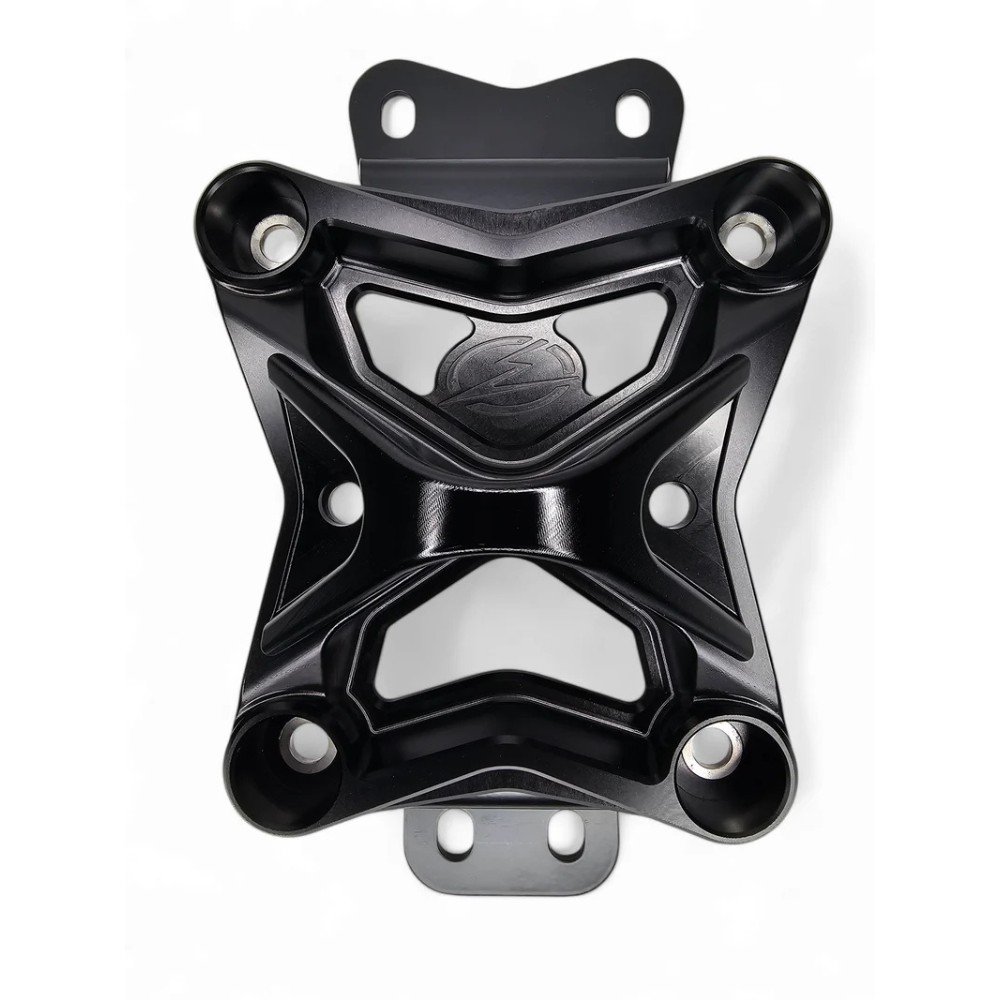

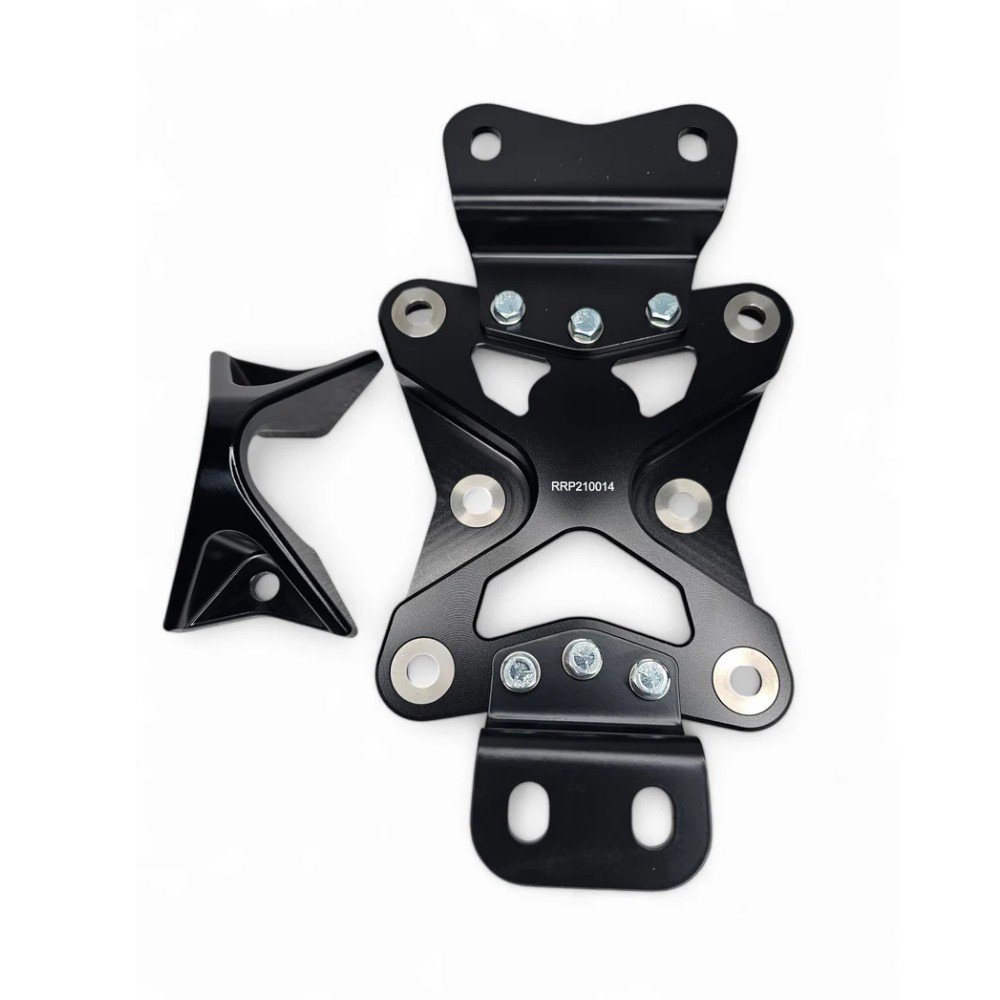

The Can-Am Maverick X3 10 Bolt Radius Rod Plate with integrated tow loop by Elektric Offroad Designs is a premium rear suspension reinforcement designed specifically for 2022 and newer models. Functioning as both a structural rear chassis brace and a heavy-duty recovery point, this plate ties the rear suspension mounting points together, dispersing high-impact forces across a wider area of the frame.

It acts as an absolute shield for your rear suspension system, protecting vulnerable heim joints, rod ends, and suspension bolts from rock strikes, trail debris, and structural warping. If you ride through deep mud, technical rock crawls, or high-speed desert dunes, this upgrade is essential for protecting your drivetrain, suspension, and chassis frame.

Key Features

• Vehicle-Specific 10-Bolt Design: Engineered specifically for the updated 2022+ Can-Am Maverick X3 chassis configuration.

• Premium 6061 billet aluminum: CNC-machined from solid high-grade aircraft billet aluminum for maximum strength-to-weight ratio.

• Integrated Heavy-Duty Tow Loop: Features a massive built-in pull hook designed to handle vertical and horizontal recovery loads.

• Stainless Steel Sleeve Inserts: Equipped with premium stainless sleeve inserts that prevent bolt holes from ovaling under harsh suspension load.

• Direct Bolt-On Fitment: Clean, no-drill installation utilizing factory mounting points for a hassle-free setup.

• Rust-Proof Anodized Finish: Hard-anodized in premium black or gunmetal finishes to protect against oxidation, mud, and trail salts.

• Protects Rear Suspension Components: Shields delicate rear heim joints, threads, and mounting bolts from impact damage.

• Substantially Reduces Suspension Play: Minimizes side-to-side deflection to maintain precise wheel alignment during hard cornering.

• Increased Rear Frame Rigidity: Reinforces the rear firewall/bulkhead sheet metal against warping or cracking under extreme stress.

• Clearance for Oversized Rods: Designed to clear aftermarket high-clearance radius rods.

• Low-Profile Styling: Fits neatly beneath the rear body panels without interference.

• Engineered by Offroad Specialists: Developed by Elektric Offroad Designs, a brand renowned for high-strength UTV protection.

Benefits

Enhanced Rear Suspension Stability

When you push your Maverick X3 hard through whoops or rocky paths, the rear radius rods exert tremendous side-to-side force on the frame. This heavy-duty 10-bolt plate locks those suspension pivot points together, dramatically reducing lateral deflection. The result is sharper handling, more predictable cornering, and enhanced rear-wheel traction.

Bulletproof Frame Reinforcement

The factory plate is made of thin stamped steel that can warp under extreme loads. Upgrading to a CNC-machined billet aluminum plate prevents the mounting bolts from stripping, bending, or ripping through the chassis sheet metal, saving you from thousands of dollars in frame repairs.

Safe Off-Road Recoveries

Getting stuck is part of off-roading. Rather than wrapping a recovery strap around a fragile axle, suspension arm, or bumper, this plate features a structurally integrated tow hook. The recovery point is aligned directly with the center line of the chassis, ensuring safe, straight, and balanced pulls without damaging your suspension.

Vehicle Compatibility

This product is engineered to fit 10-bolt rear suspension bulkheads found on the modern Can-Am Maverick X3 chassis.

• Can-Am Maverick X3 Turbo RR (All Models): 2022, 2023, 2024, 2025, 2026+

• Can-Am Maverick X3 DS Turbo RR: 2022, 2023, 2024, 2025, 2026+

• Can-Am Maverick X3 RS Turbo RR: 2022, 2023, 2024, 2025, 2026+

• Can-Am Maverick X3 X rc Turbo RR: 2022, 2023, 2024, 2025, 2026+

• Can-Am Maverick X3 X mr Turbo RR: 2022, 2023, 2024, 2025, 2026+

• Can-Am Maverick X3 Max (4-Door Models): 2022, 2023, 2024, 2025, 2026+

Note: This plate does not fit 2017–2021 models, which utilize a 6-bolt radius rod plate configuration. Always verify your vehicle’s rear bolt pattern count before ordering.

Installation Guide

Technical Overview:

• Estimated Installation Time: 45 to 60 minutes

• Difficulty Level: Moderate / Intermediate

• Tools Required: Jack and heavy-duty jack stands, metric socket set ($15\text{ mm}$ and $17\text{ mm}$ sockets/wrenches), torque wrench, and painter’s tape or ratchet straps (to hold radius rods in place).

Signs This Part Needs Replacement

• Bent OEM Plate: If your factory steel plate looks bowed or warped inward, it has succumbed to heavy rear impact or extreme frame flex.

• Ovaled Bolt Holes: Excessive play in your rear suspension indicates that the mounting holes on your stock plate have ovaled out, causing shifting rods.

• Rear-End Wandering: A loose or unstable feeling in the rear end when cornering at high speeds points directly to loose rear link points or deflection.

• Bent Bolts: Visible distortion or bowing of the mounting bolts when inspected from beneath the vehicle.

Frequently Asked Questions

Will this plate fit a 2020 Can-Am Maverick X3?

No. This plate is engineered specifically with a 10-bolt pattern to match 2022 and newer models. 2017–2021 models use a 6-bolt layout.

Do I need to buy special hardware for this install?

The plate is designed to reuse your factory hardware, but you must ensure your stock bolts are completely straight before reassembly.

What is the purpose of the stainless steel sleeves?

Aluminum is a softer metal than steel. The stainless steel sleeve inserts prevent the hard steel suspension bolts from wearing down and “ovaling” the aluminum plate holes under heavy loads.

Can I use this with aftermarket radius rods?

Yes, this Elektric Offroad Designs plate is fully compatible with most high-clearance and heavy-duty aftermarket radius rods.

Is the tow hook strong enough for winch recoveries?

Absolutely. The integrated pull hook is CNC-machined into the billet design to act as a robust recovery point. However, always pull straight and avoid dangerous kinetic snatching.

Can I install this without lifting my UTV?

It is highly recommended to lift the vehicle. Lifting relieves the suspension of the machine’s weight, making it significantly easier to slide the bolts out and keep the radius rods aligned during install.
