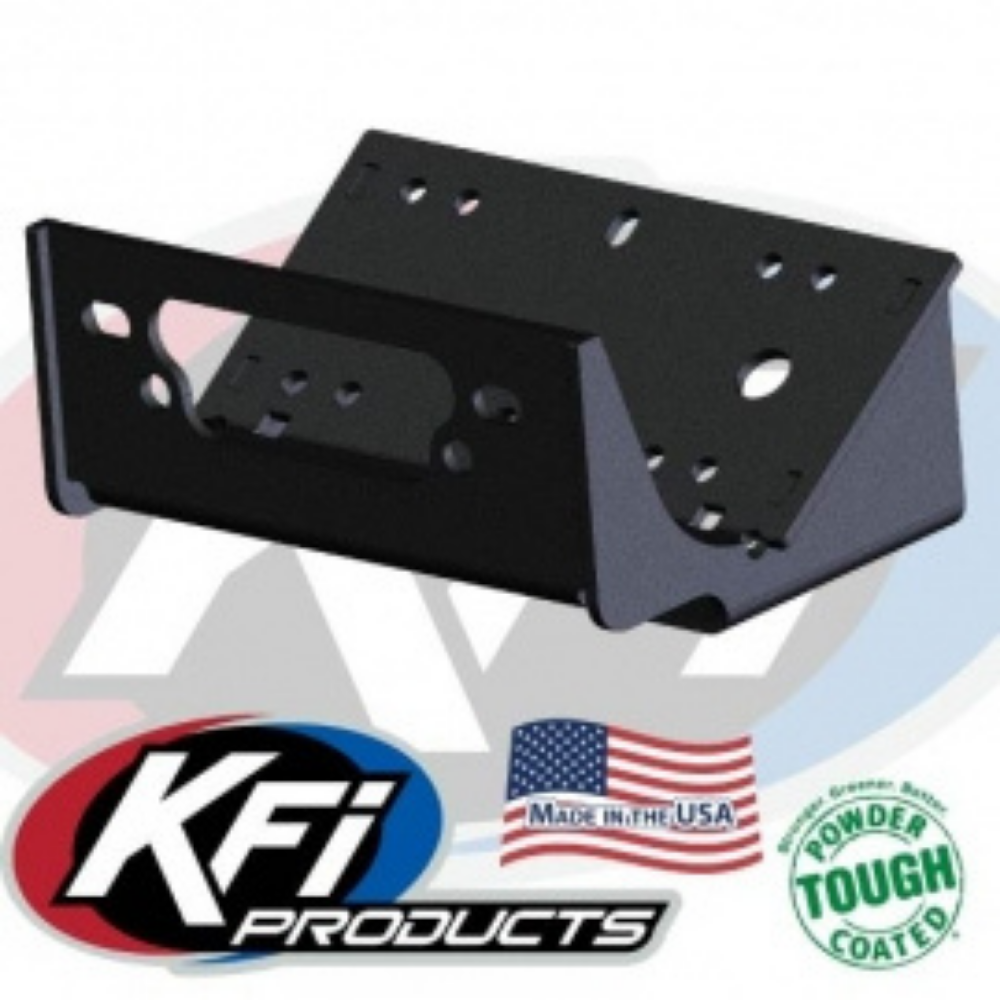

Winch Mount For Kawasaki Teryx/Teryx 4 750/800 (2014+) – KFI
Winch Mount For Kawasaki Teryx/Teryx 4 750/800 (2014+) – KFI - Image 2

Winch Mount For Kawasaki Teryx/Teryx 4 750/800 (2014+) – KFI

$199.95

Constructed of 3⁄16″ steel Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep. Powder coated black for supreme durability Very easy to install Complete installation instructions included All mounting hardware included Satisfaction guaranteed 100% made in USA

SKU: 101945
Category:

Description

Designed to work with the following winches:

  • OZ ARMOUR: EWX200A / EWP2500ASR / EWP2500A / EWP3500ASR
  • MILLER UTILITY: EWX2000A
  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 (U45w-R2 and SE45w-R2 will NOT work on 2014-19 models)
  • KFI: AM-25 / AM-35 / AS-25 / AS-35
  • KFI: AS-50 / AS-50w
  • WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN: RT40 / XT40
  • WARN: Vantage 2000-3000 lb (Will NOT work with Vantage 4000 due to motor lead orientation)
  • WARN: ProVantage 2500-4500 lb
    • ProVantage 3500 and 4500 will require lead rotation.
  • RAMSEY: ATV2500 / ATV3000
  • SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500/ LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
  • MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • MASTER LOCK: 1500 lb #2955AT
    • Requires roller fairlead with a 124 mm (4.875″) bolt pattern.
  • CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND: 2-Hole Winches
  • BADLAND: Standard Winches
  • BADLAND: WIDE Winches
  • CHAMPION: 2-Hole Winches
  • CHAMPION: Standard Winches
  • CHAMPION: WIDE Winches
  • KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER: KT2000
    • Requires roller fairlead with a 124 mm (4.875″) bolt pattern.
  • SMITTYBILT: XRC 2.0
    • Requires roller fairlead with a 124 mm (4.875″) bolt pattern.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT: XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (76 mm [3.00″] x 124 mm [4.875″] bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 76 mm (3.00″) x 124 mm (4.875″) bolt pattern mount-up
    • All with 76 mm (3.00″) x 168 mm (6.600″) bolt pattern mount-up
  • TRAVELLER:1078311 (1078311 Will NOT work on 2014-2015 models)
  • TRAVELLER:1078088/ 1078302
    • Requires roller fairlead with a 124 mm (4.875″) bolt pattern.
  • Possibly many others with the below standard mounting patterns:
    • 4-Hole (76 mm [3.00″] x 124 mm [4.875″] bolt pattern with rollers that are 124 mm [4.875″] bolt pattern)
    • 4-Hole WIDE (76 mm [3.00″] x 168 mm [6.600″] bolt pattern with rollers that are 168 mm [6.600″] or 152 mm [6.000″] bolt pattern)
    • 2-Hole (79 mm [3.10″] with rollers that are 124 mm [4.875″] bolt pattern)
  • QUADBOSS: RP25 / RP35

This product fits the following vehicle models:

  • Kawasaki Teryx 800 LE – 2013-2020
  • Kawasaki Teryx S LE – 2021-2024
  • Kawasaki Teryx4 800 LE – 2014-2020
  • Kawasaki Teryx5 S LE – 2021-2024
