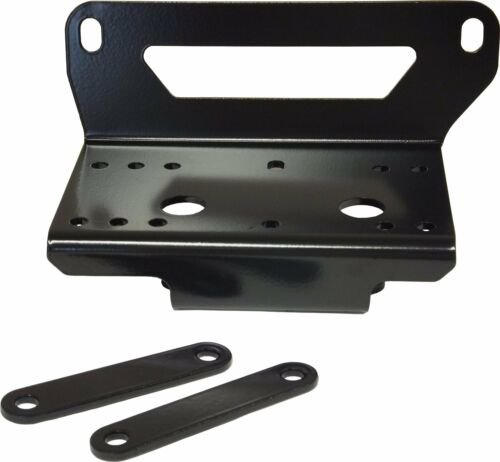

Winch Mount For John Deere Gator XUV 550/560/590 – KFI
$199.95
- Constructed of 3⁄16″ Grade 50 steel
- Plastic trimming may be required for certain models and winches
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- Mounts winch tucked back behind front bumper
- Roller fairlead and winch not included
Description
Designed to work with the following winches:
- OZ ARMOUR: EWX2000A / EWP2500A / EWP2500ASR / EWP3500ASR / RISE45 / RISE45ASR
- MILLER UTILITY: EWP3500A
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50 / AS-50w
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- Requires Standard KFI fairlead bracket #101715.
- WARN: VRX 45 / VRX 45-S
- Requires Wide KFI fairlead bracket #100695.
- WARN: AXON 35 / AXON 35-S / AXON 45RC
- Requires Standard KFI fairlead bracket #101715.
- WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
- Requires Wide KFI fairlead bracket #100695.
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40
- WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
- WARN: Vantage 4000 lb / Provantage 4500 lb
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND 2-Hole Winches: 68146 / 61258 / 61297 / 61840
- BADLAND Standard Winches: 68145 / 61604 / 61257 / 61383
- BADLAND WIDE Winches: 61384 / 68144 / 61605
- CHAMPION 2-Hole Winches: 10028 / 10032 /12001 /12002 /12003 /12004 /13001 /13005 /100127 /C20049 /C20051 /C20249 /C30045 /C30145
- CHAMPION Standard Winches: 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
- CHAMPION WIDE Winches: 14008 / 14501 / 14551 / 14552 / 40252
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 124 mm (4.875″) bolt pattern.
- SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 124 mm (4.875″) bolt pattern.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (76 mm [3.00″] x 124 mm [4.875″] bolt pattern)
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 76 mm (3.00″) x 124 mm (4.875″) bolt pattern mount-up
- All with 76 mm (3.00″) x 168 mm (6.600″) bolt pattern mount-up
- TRAVELLER:1078311
- TRAVELLER:1078088/ 1078302
- Require roller fairlead with a 124 mm (4.875″) bolt pattern.
- Possibly many others with the below standard mounting patterns:
- 4-Hole (76 mm [3.00″] x 124 mm [4.875″] bolt pattern with rollers that are 124 mm [4.875″] bolt pattern)
- 4-Hole WIDE (76 mm [3.00″] x 168 mm [6.600″] bolt pattern with rollers that are 168 mm [6.600″] or 152 mm [6.000″] bolt pattern)
- 2-Hole (79 mm [3.10″] with rollers that are 124 mm [4.875″] bolt pattern)
- QUADBOSS: RP25 / RP35
This product fits the following vehicle models:
- John Deere Gator XUV 560E – 2022-2024
- John Deere Gator 590i – 2016-2018
- John Deere Gator 590i S4 – 2016-2018
- John Deere Gator 590E – 2018-2023
- John Deere Gator 590E S4 – 2018-2021
- John Deere Gator XUV 590M – 2018-2024
- John Deere Gator 590M S4 – 2018-2023
- John Deere Gator RSX 850i – 2013-2017
- John Deere Gator RSX 860i – 2016-2018
- John Deere Gator RSX 860E – 2019-2020
- John Deere Gator RSX 860M – 2019-2020
