Winch Mount For Honda Pioneer 1000 – KFI
Winch Mount For Honda Pioneer 1000 – KFI - Image 2

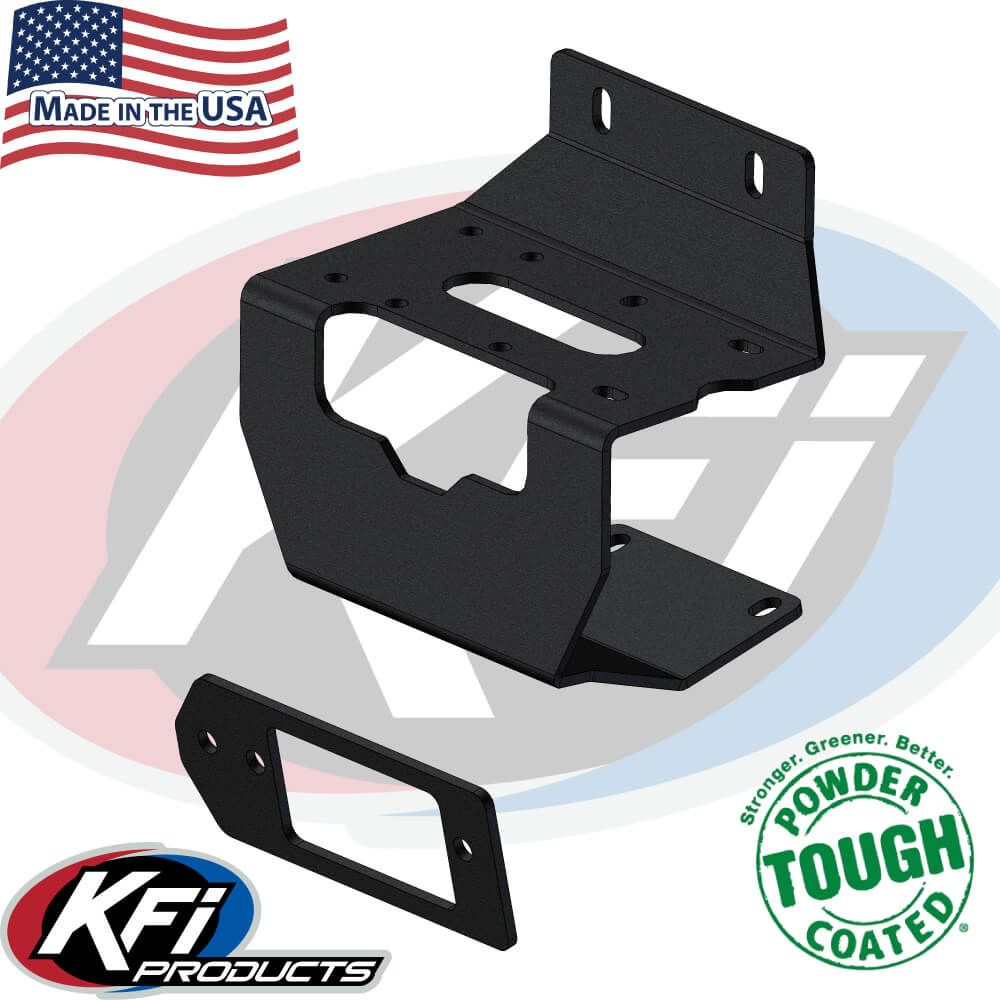

Winch Mount For Honda Pioneer 1000 – KFI

$199.95

Replaces older style KFI Mount #101285 improved cable angle out of the stock bumper Simpler install Winch is mounted upside down for better cable angle out of the rollers Constructed of 3⁄16″ steel Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep Powder coated black for supreme durability Very easy to install Complete installation instructions included All mounting hardware included Satisfaction guaranteed Roller fairlead and winch not included 100% made in USA

Out of stock

SKU: 101965
Category:

Description

Designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
  • KFI: AM-25 / AM-35 / AS-25 / AS-35
  • KFI: AS-50 / AS-50w
  • WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
  • WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN: AXON 35 / AXON 35-S / AXON 45RC
  • WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
  • WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN: RT40 / XT40
  • WARN: Vantage 2000-4000 lb
  • WARN: ProVantage 2500-4500 lb
  • RAMSEY: ATV2500 / ATV3000
  • SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
  • MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 / PE5000
  • CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND: 2-Hole Winches
  • BADLAND: Standard Winches
  • BADLAND: WIDE Winches
  • CHAMPION: 2-Hole Winches
  • CHAMPION: Standard Winches
  • CHAMPION: WIDE Winches
  • KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER: KT2000
    • Requires roller fairlead with a 124 mm (4.875″) bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT: XRC 2.0
    • Requires roller fairlead with a 124 mm (4.875″) bolt pattern; available if needed #ATV-RF.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT: XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (76 mm [3.00″] x 124 mm [4.875″] bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 76 mm (3.00″) x 124 mm (4.875″) bolt pattern mount-up
    • All with 76 mm (3.00″) x 168 mm (6.600″) bolt pattern mount-up
  • Traveller: 1078311
  • Traveller: 1078088 / 1078302
    • Requires roller fairlead with a 124 mm (4.875″) bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm:
    • 4-Hole (76 mm [3.00″] x 124 mm [4.875″] bolt pattern with rollers that are 124 mm [4.875″] bolt pattern)
    • 4-Hole WIDE (76 mm [3.00″] x 168 mm [6.60″] bolt pattern with rollers that are 168 mm [6.600″] or 152 mm [6.000″] bolt pattern)
    • 2-Hole (79 mm [3.10″] with rollers that are 124 mm [4.875″] bolt pattern)
  • QUADBOSS: RP25 / RP35

This product fits the following models:

  • Honda Pioneer 1000 – 2015-2024
  • Honda Pioneer 1000 LE – 2017-2019
  • Honda Pioneer 1000-5 – 2016-2024
  • Honda Pioneer 1000-6 – 2024
