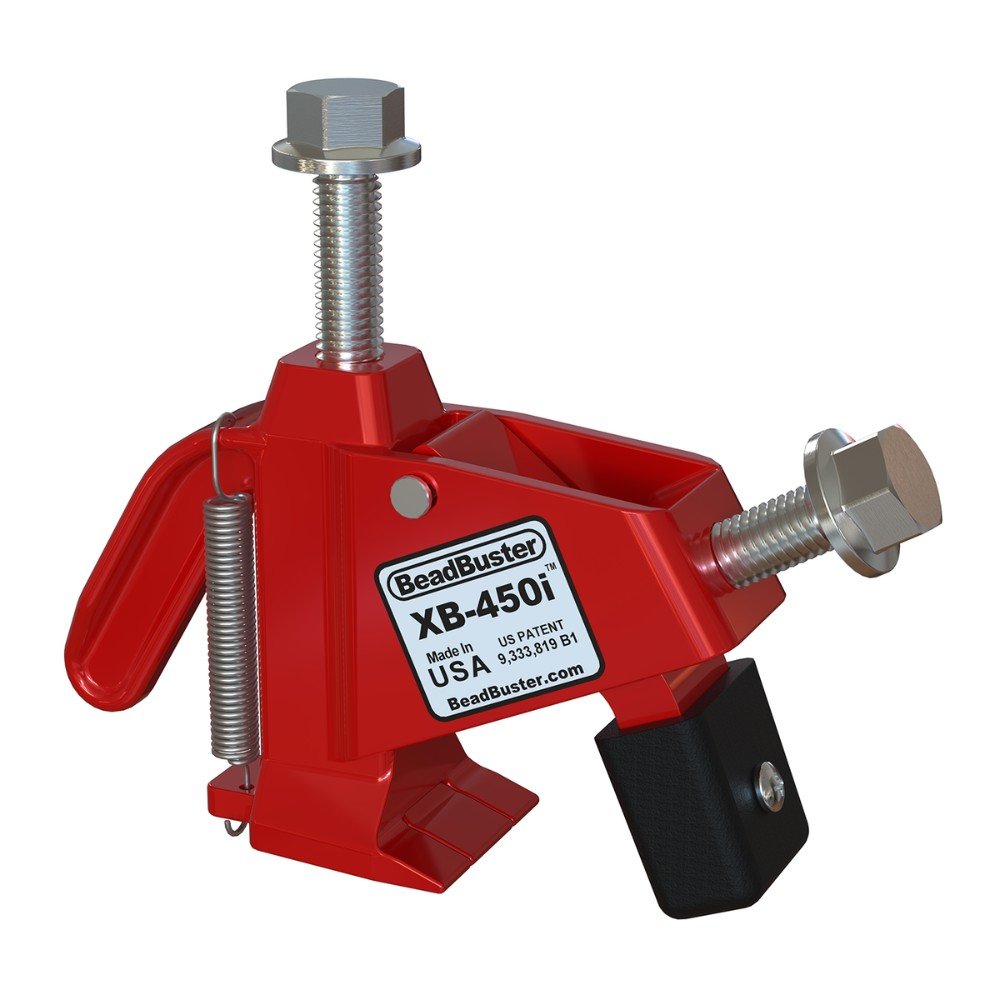

BeadBuster XB-450i

Description

Overview

Changing stubborn off-road tires in your garage or out on a remote trail no longer requires fighting with clumsy levers or heavy shop machinery, thanks to the BeadBuster XB-450i ATV Tire Bead Breaker. What this product is: an upgraded, heavy-duty portable tool engineered specifically to unseat stubborn tire beads from single-piece rims. What it does: it applies up to 9.0 tons of mechanical ram force directly against the tire bead, pushing it safely past the rim safety hump without bending lightweight aluminum wheels. Why it is important: factory tire beads tightly bond to wheel lips over time due to dirt, moisture, and high-pressure seating, making manual dismounting virtually impossible without a specialized mechanical advantage. Which ATV systems it affects: this tool interacts directly with your wheels, tires, and overall maintenance routine, keeping your ATV Drive Train Parts, hubs, and wheel assemblies free from hammer damage or rim distortion across the USA, Canada, and North America.

Key Features

• Premium investment cast construction utilizing hardened 4140 chrome-moly steel (AISI 4140, HRC 30)

• Heavy-duty custom Grade-8 drive flange head bolts with crowned tips to prevent thread mushrooming

• Enhanced double-female ram thread length measuring a full 1 inch for maximum structural integrity

• Generates an impressive 9.0 tons of maximum ram force and 4.2 tons of clamp force

• Padded clamp arm design protects custom alloy and aluminum wheels from scratches and dents

• Compact and lightweight frame weighing just 3.0 lbs for effortless storage in a glove box or tool pack

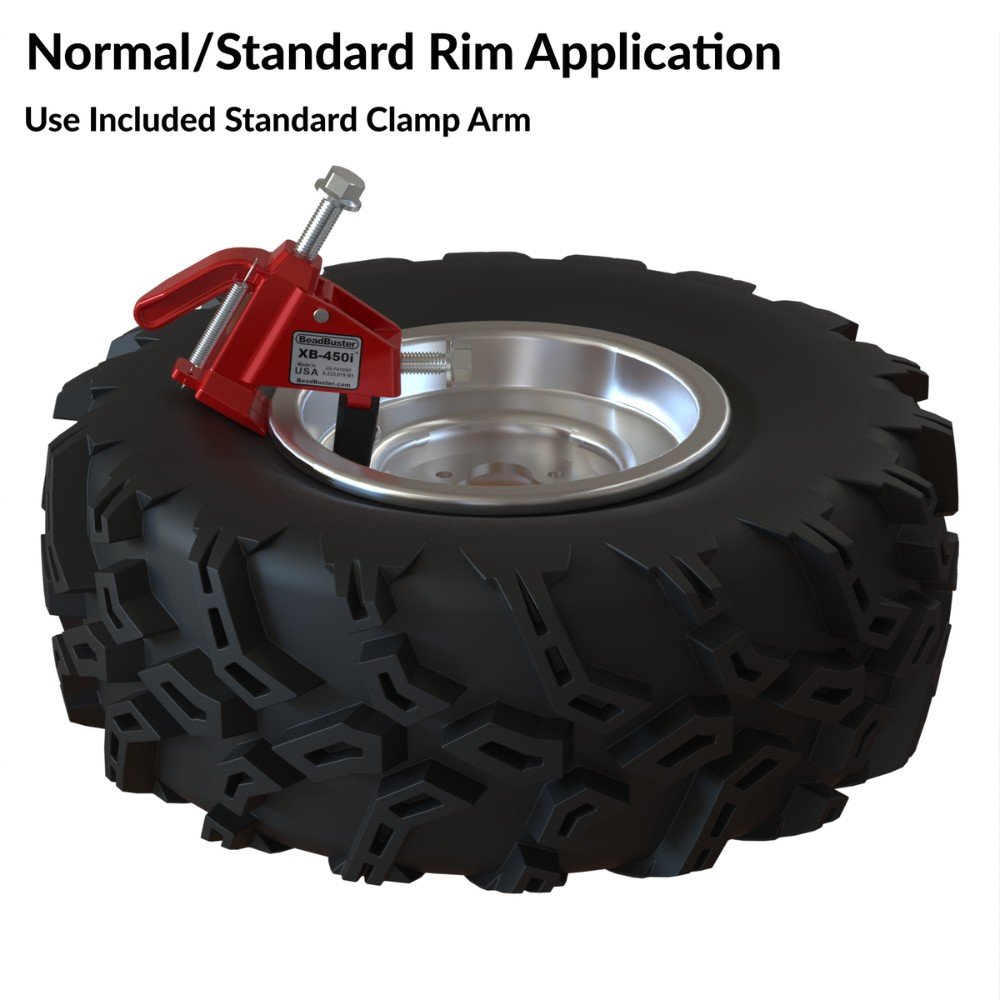

• Universal compatibility with 1-piece wheels utilizing tires up to 32 inches in outer diameter

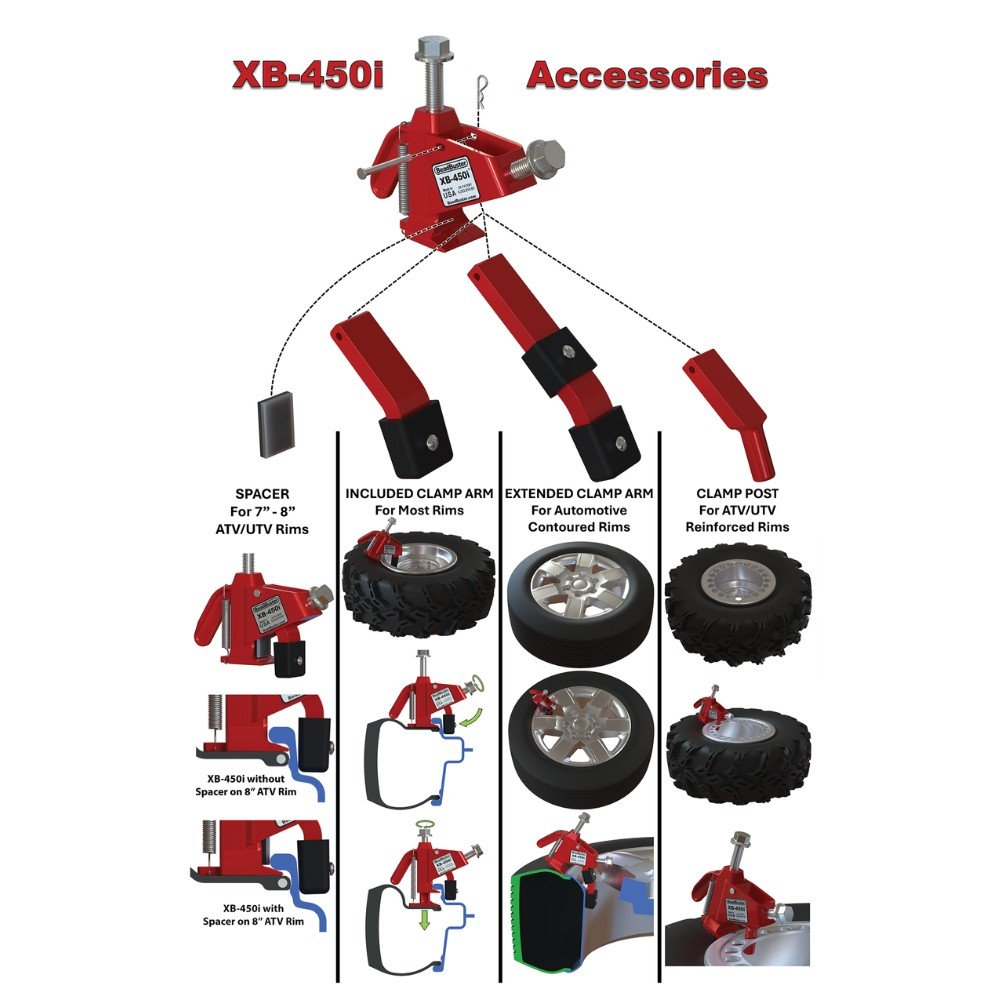

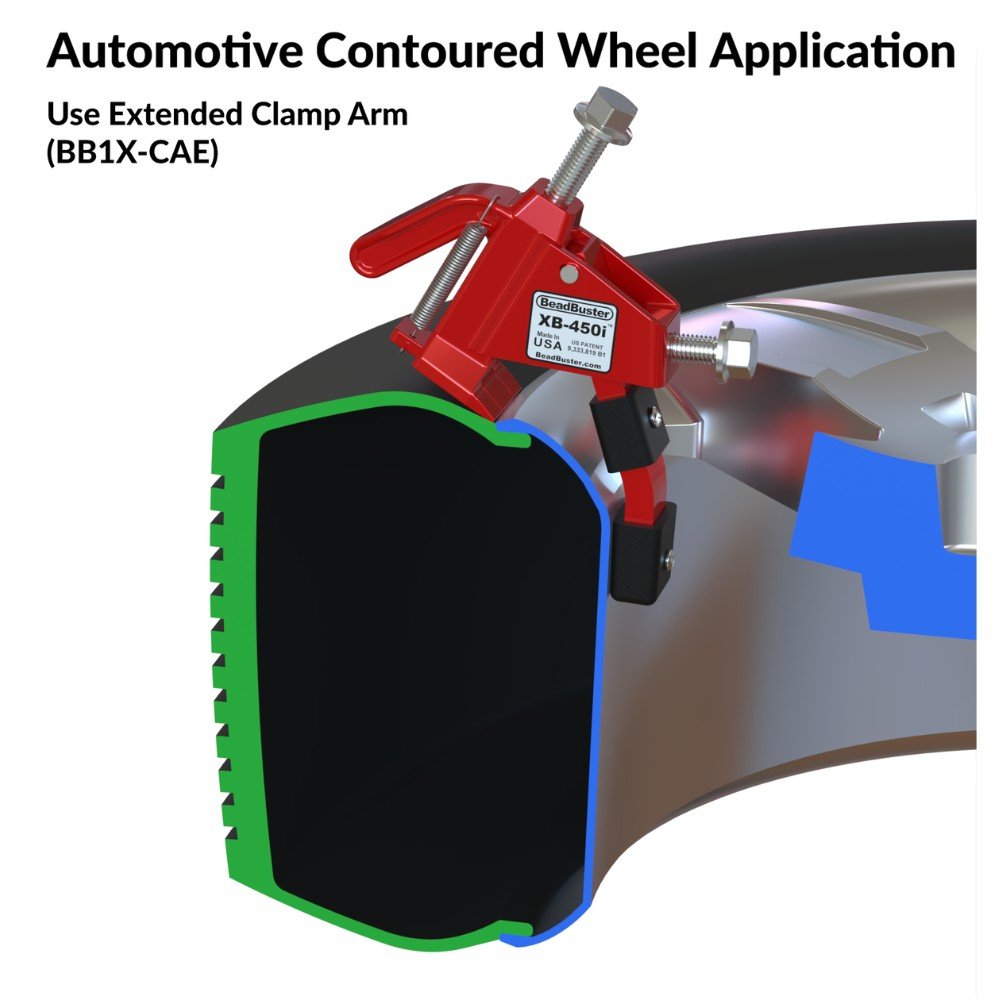

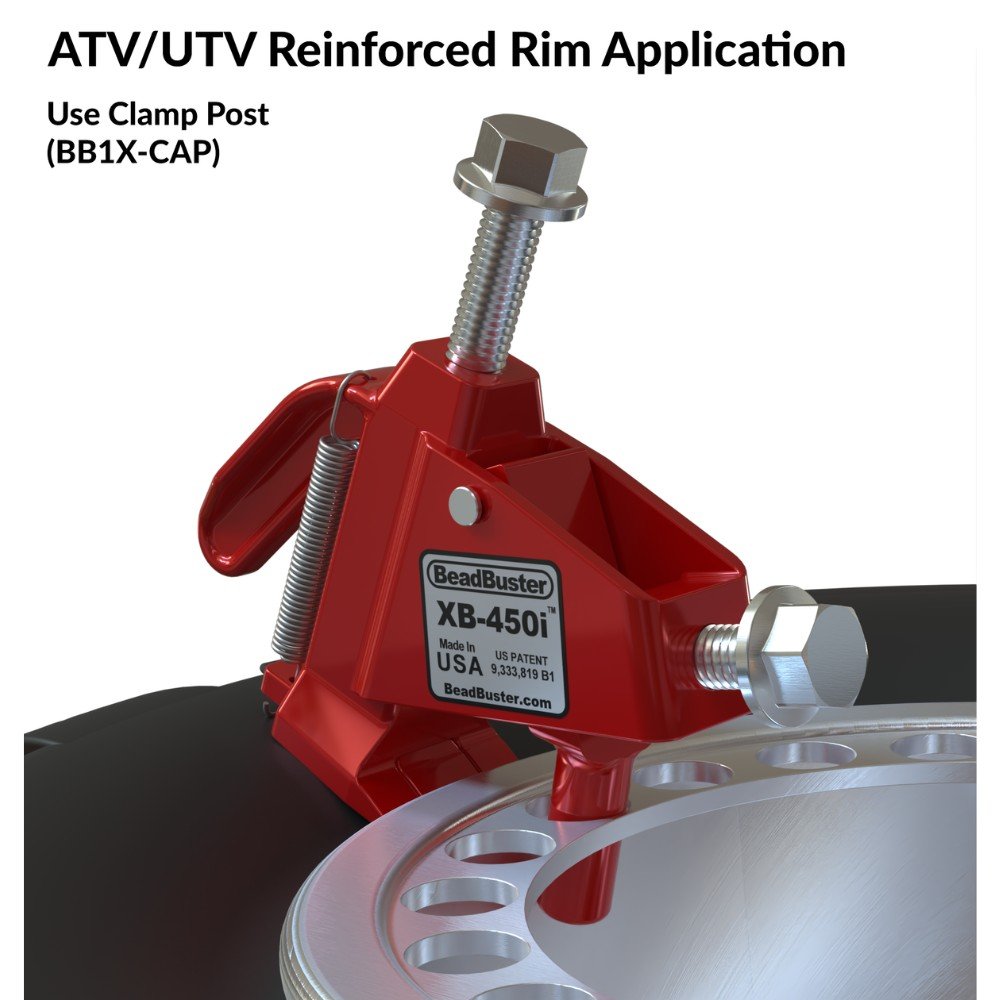

• Removable clamp arm allows swapping with specialized accessories for unique rim profiles

• Durable polyester powder-coated finish for ultimate corrosion and scratch resistance

• Custom alloy steel clevis hinge pin replaces old wing-nut designs for superior reliability

• Designed to operate using standard hand wrenches or portable impact tools

• Proudly designed and manufactured in the USA with a 3-year manufacturer warranty

Benefits

Investing in this portable bead breaker transforms a frustrating, knuckle-busting chore into a quick, straightforward process. The tool’s clever reaction-force design pushes against the rim lip rather than squeezing across the entire wheel width, eliminating the risk of warping expensive aftermarket rims. Its rugged chrome-moly steel build ensures long-term reliability and commercial-grade durability. By enabling fast trail-side flat repairs and effortless tire changes at home, it saves you valuable time, eliminates expensive shop fees, and ensures you can maintain peak traction across your ATV Suspension Parts and wheels wherever your adventures take you.

Vehicle Compatibility

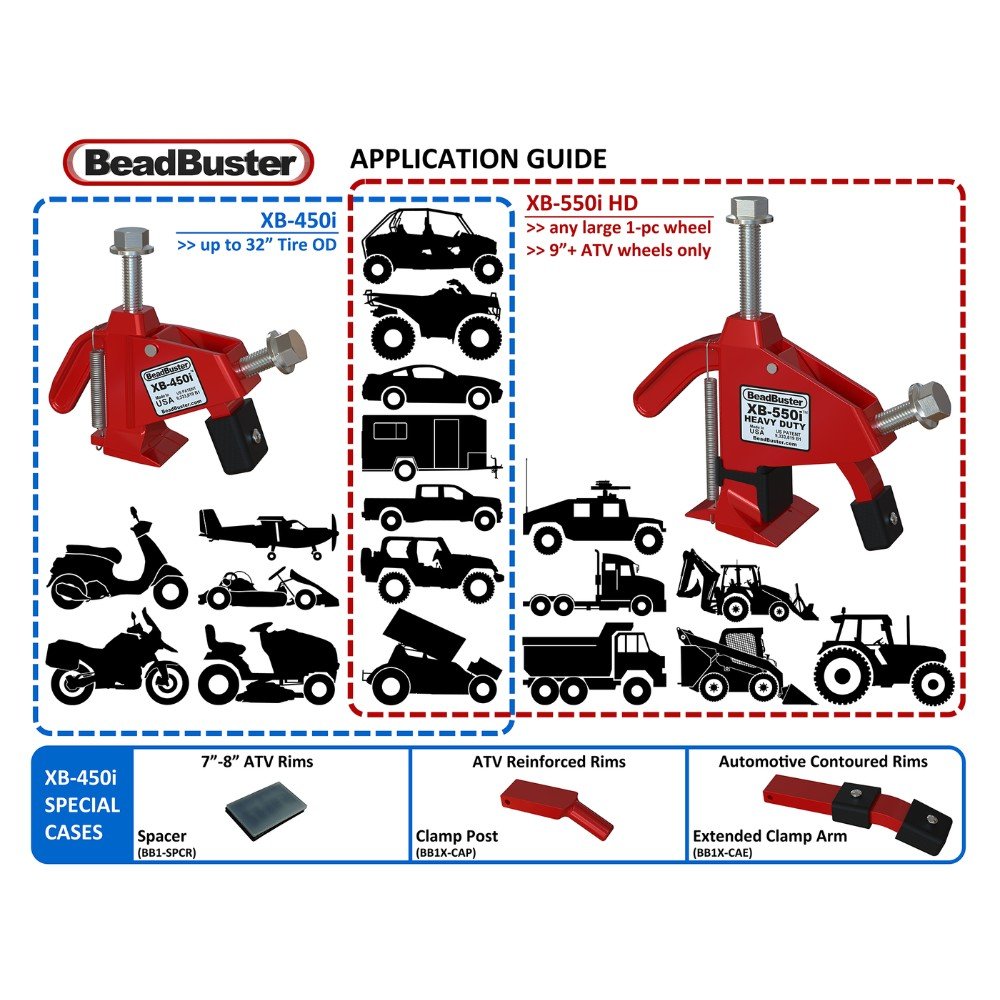

The BeadBuster XB-450i is engineered for exceptional versatility across a vast spectrum of powersports and utility applications.

• Compatible Manufacturers: Universal fit for Polaris, Can-Am, Yamaha, Honda, Kawasaki, Arctic Cat, Suzuki, and more.

• Compatible Models: All side-by-sides (UTVs), ATVs, quad bikes, dirt bikes, street motorcycles, trailers, and light equipment.

• Compatible Years: Universal application across all vintage and modern model years.

• Common Applications: Home garage tire changes, trail-side flat repairs, race track pit maintenance, and routine off-road tire swaps on 9-inch and larger rims.

Installation Guide

Operating this tire maintenance tool requires basic mechanical familiarity and standard shop tools.

• Tools Required: 3/4-inch wrench or socket, portable impact wrench (optional), tire irons, soapy water solution or tire lubricant.

• Estimated Installation Time: 10 to 15 minutes per tire.

• Difficulty: Beginner to Intermediate.

• Helpful Installation Tips: Always remove the valve core to completely deflate the tire before attempting to break the bead. Liberally apply soapy water or tire lubricant between the tire bead and rim flange to reduce friction. Tighten the clamp bolt until the tool sits completely vertical against the rim, then drive the ram bolt down to unseat the bead. If using a power impact gun, exercise caution to avoid over-torquing the hardware.

Signs This Part Needs Replacement

While the tool itself is built from hardened 4140 chrome-moly steel for incredible longevity, you should inspect your gear regularly. Signs that indicate maintenance or hardware servicing include worn or stripped thread engagement from over-torquing without lubrication, damaged bolt heads, or a loose hinge pin. Keeping your hardware clean and lightly greased will ensure flawless performance for years.

Frequently Asked Questions

Will the BeadBuster XB-450i scratch or damage my aluminum rims?

No, the tool features a specially padded clamp arm designed to protect custom aluminum and alloy wheels from unsightly scratches and gouges during the bead-breaking process.

Can I carry this tool with me out on the trail?

Yes, weighing only 3.0 pounds and measuring compactly, it easily fits inside a UTV glove box, storage bag, or rear cargo box for emergency trail-side repairs.

What size wheels is this tool designed to fit?

The XB-450i is optimized for standard 9-inch and larger rim diameters. For smaller 7-inch or 8-inch ATV wheels, an optional magnetic spacer accessory is required to prevent the feet from catching the bead retainer.

Do I need a special wrench to operate it?

A standard 3/4-inch wrench or socket is required to drive both the clamp and ram bolts. While hand tools work well, a low-power impact wrench can also be used with care.

Will this tool work on beadlock wheels?

Beadlock wheels clamp the outer tire bead externally via a ring, meaning they do not require a traditional bead breaker for the outer bead, though the XB-450i can still assist with standard inner lips on single-piece configurations.

Can I use it on automotive or trailer tires as well?

Yes! In addition to ATVs and UTVs, it works wonderfully on passenger cars, light trucks, trailers, lawn mowers, and motorcycle tires using wheels up to 32 inches in outer diameter.

Does it require being bolted down to a workbench or floor?

No, the XB-450i is entirely self-contained and handheld, meaning it requires zero floor mounting or bulky shop infrastructure to operate effectively.

How much breaking force does the tool generate?

This upgraded model delivers up to 4.2 tons of maximum clamp force and an impressive 9.0 tons of maximum ram force to conquer stubborn factory seals.

What maintenance is required for the tool?

Keep the drive threads clean and lightly lubricated, and inspect the Grade-8 bolts periodically to ensure smooth operation during every tire change.

Where can I find other essential off-road maintenance tools?

Explore our extensive catalog for top-tier replacement components, ATV Suspension Parts, and trail gear to keep your machine ready for action.
