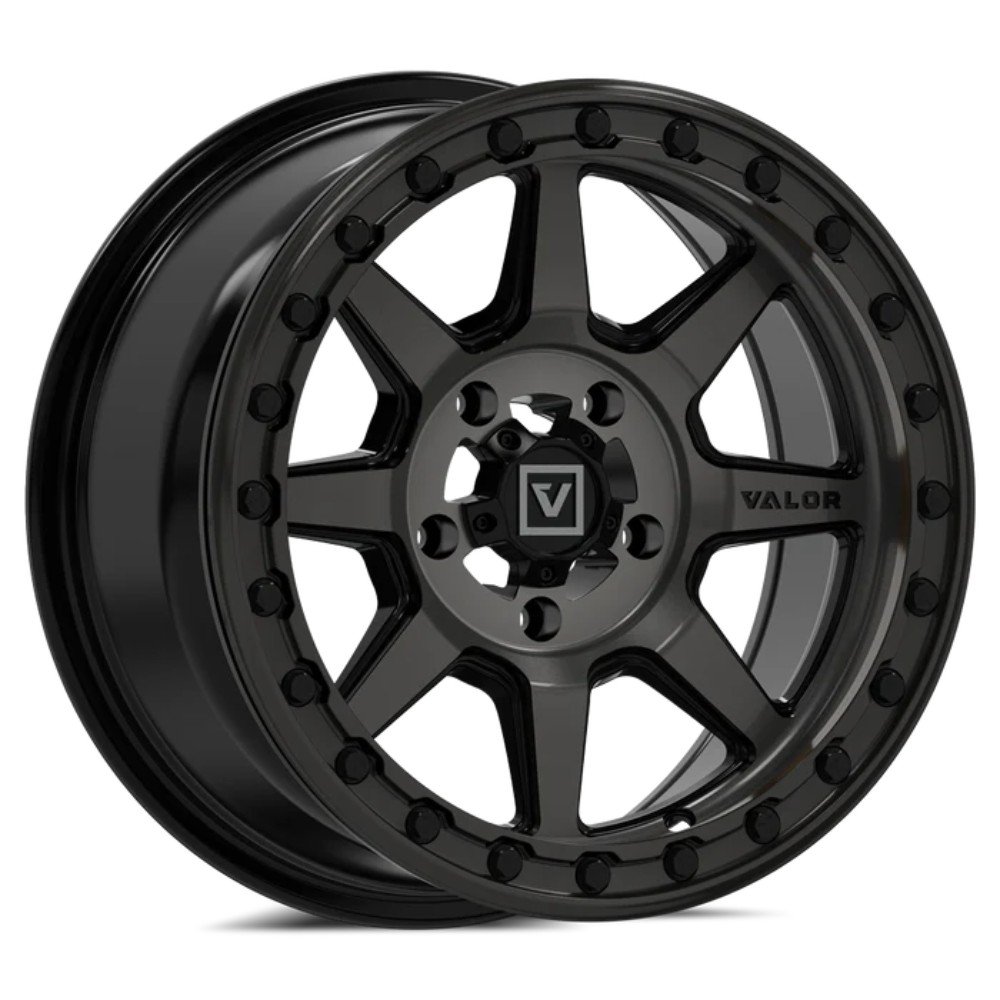

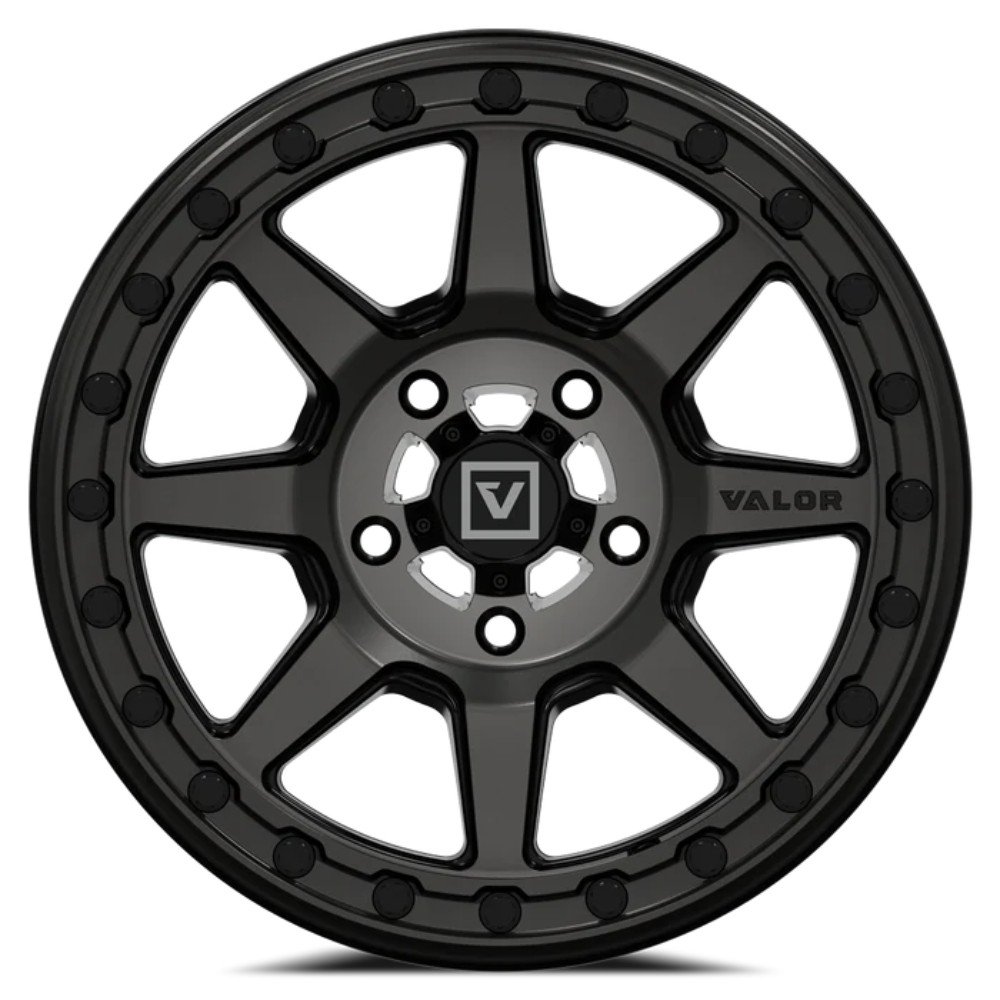

Alloy Wheel VALOR V13 BeadLock 5/114.3 15 X 7 Dark Tint

Description

Overview

Conquering brutal off-road trails, rocky paths, and shifting desert dunes demands wheel equipment engineered for maximum structural resilience, and investing in the high-performance Alloy Wheel VALOR V13 BeadLock 5/114.3 15 X 7 Dark Tint completely elevates your side-by-side build. What this product is: a premium, heavy-duty utility terrain vehicle wheel combining a classic eight-spoke architecture with true mechanical beadlock retention. What it does: it securely clamps the tire bead against the outer rim flange, allowing riders to drop tire pressures safely down to single digits for maximized contact patch traction without slipping or de-beading. Why it is important: standard recreational wheels risk losing air pressure under aggressive cornering or heavy lateral loads in technical terrain, making a true beadlock indispensable for serious overlanding and racing. Which ATV systems it affects: it bolts directly to your machine’s wheel hubs, interfacing seamlessly with your ATV Suspension Parts and ATV Drive Train Parts to handle dynamic cornering forces and heavy load weights across rugged terrain in the USA, Canada, and North America.

Key Features

• Manufactured by industry-trusted brand Valor Offroad using high-grade A356 aluminum

• Advanced T6 heat treatment process for ultimate structural integrity and impact resistance

• True mechanical 6061 forged aluminum beadlock ring for absolute tire retention

• Precision 15×7 wheel dimensions with a favorable +10mm (4+3) offset for an aggressive wide stance

• Specific 5/114.3 (5×4.5) bolt pattern engineered for modern high-performance UTV platforms

• Stunning multi-stage Dark Tint translucent finish over a machined aluminum face

• Lightweight engineering design scaling in at approximately 17.20 lbs to minimize unsprung weight

• Heavy-duty 1,400 lb structural load rating built to withstand extreme punishment

• Timeless straight eight-spoke layout featuring a debossed VALOR logo accent

• Reinforced inner lip geometry designed to shrug off heavy rock impacts

• Engineered and tested rigorously to exceed SAE 2530 off-road safety specifications

• Bolt-on low-profile VCAP2 center cap included with secure installation hardware

Benefits

Upgrading your machine with these elite beadlock wheels yields major performance and safety dividends. The true beadlock mechanism lets you air down your tires over rocks and sand, dramatically increasing the surface footprint and mechanical grip to keep you moving forward when others get stuck. Built from lightweight A356/T6 aluminum, the reduced rotational mass improves suspension responsiveness and overall ride quality. Furthermore, the rugged 1,400 lb load rating and reinforced construction guarantee unmatched durability and longevity, giving you total peace of mind during aggressive trail riding and heavy utility hauling.

Vehicle Compatibility

This specific 5/114.3 bolt pattern variant is custom-engineered for modern wide-stance utility vehicle platforms.

• Compatible Manufacturers: Polaris, and select high-performance 5-lug UTV configurations.

• Compatible Models: Polaris RZR Pro R, RZR Pro S, RZR Turbo R, Polaris Ranger XD 1500, and Polaris Xpedition.

• Compatible Years: 2020, 2021, 2022, 2023, 2024, 2025, 2026.

• Common Applications: Extreme rock crawling, desert open-runner racing, sand dune slashing, and heavy-duty trail touring.

Installation Guide

Mounting beadlock wheels requires meticulous hardware torque sequences to guarantee safety and performance.

• Tools Required: Floor jack, heavy-duty jack stands, torque wrench, metric socket set, anti-seize lubricant, and compatible aftermarket lug nuts (sold separately).

• Estimated Installation Time: 1 to 2 hours for a full set of four.

• Difficulty: Moderate (requires precise torque patterns for beadlock ring bolts).

• Helpful Installation Tips: When mounting tires, ensure the outer tire bead is seated correctly into the deep-center well before torquing the beadlock ring bolts in a criss-cross (star) pattern. Always apply the manufacturer-recommended anti-seize or thread locker to the ring bolts and torque them in stages to ensure uniform clamping pressure. Verify wheel lug torque after your initial test run.

Signs This Part Needs Replacement

While built to endure severe abuse, extreme rock strikes or rollovers can compromise wheel safety. You should inspect or replace your wheels immediately if you observe deep structural fractures in the aluminum spokes, severe flat-spotting or bending on the inner or outer rim lips from heavy impacts, stripped beadlock ring bolt threads that fail to hold proper torque, or persistent air leakage caused by a warped mounting surface.

Frequently Asked Questions

What vehicles fit the 5/114.3 bolt pattern V13 wheel?

This 5-lug variation is specifically designed for modern high-clearance platforms like the Polaris RZR Pro R, Turbo R, RZR Pro S, Ranger XD 1500, and Polaris Xpedition.

Why choose a beadlock wheel over a standard non-beadlock wheel?

True beadlock wheels physically clamp the outer tire bead to the rim using a heavy-duty ring, allowing you to run low tire pressures safely without the tire unseating during hard cornering or rock crawling.

Do I need special lug nuts for Valor V13 wheels?

Yes, aftermarket wheels typically require tapered or spline-style lug nuts that match your vehicle’s specific thread pitch. Standard factory OEM lug nuts often will not seat correctly.

What is the offset of this wheel?

The V13 features a +10mm (4+3) offset, which pushes the wheel slightly outward to provide a wider, more stable stance and aggressive aesthetic.

How much weight can this wheel support?

Each 15×7 wheel boasts a robust 1,400 lb maximum load rating, making it more than capable of handling heavy multi-passenger side-by-sides and utility rigs.

How do I maintain the Dark Tint finish?

Wash mud and debris away using mild soap, water, and a soft cloth. Avoid harsh chemical cleaners or abrasive scouring pads that could scratch the tinted clear coat layer.

Are beadlock wheels legal for street use?

While many jurisdictions permit them, true beadlock wheels are primarily designed and engineered for off-road competition and recreational trail use. Check local highway regulations if driving on public roads.

What material is used to construct the beadlock ring?

The removable beadlock ring is crafted from forged 6061 aluminum, providing exceptional tensile strength while keeping total weight to a minimum.

Does the wheel come with a center cap?

Yes, each wheel includes a sleek bolt-on VCAP2 center cap pre-fitted with installation hardware and a stylish charcoal logo accent.

Can I repair a scratched beadlock ring?

Yes, because the ring is bolted on independently, you can easily remove, touch up, or replace individual beadlock rings if cosmetic rock rash occurs over time.
