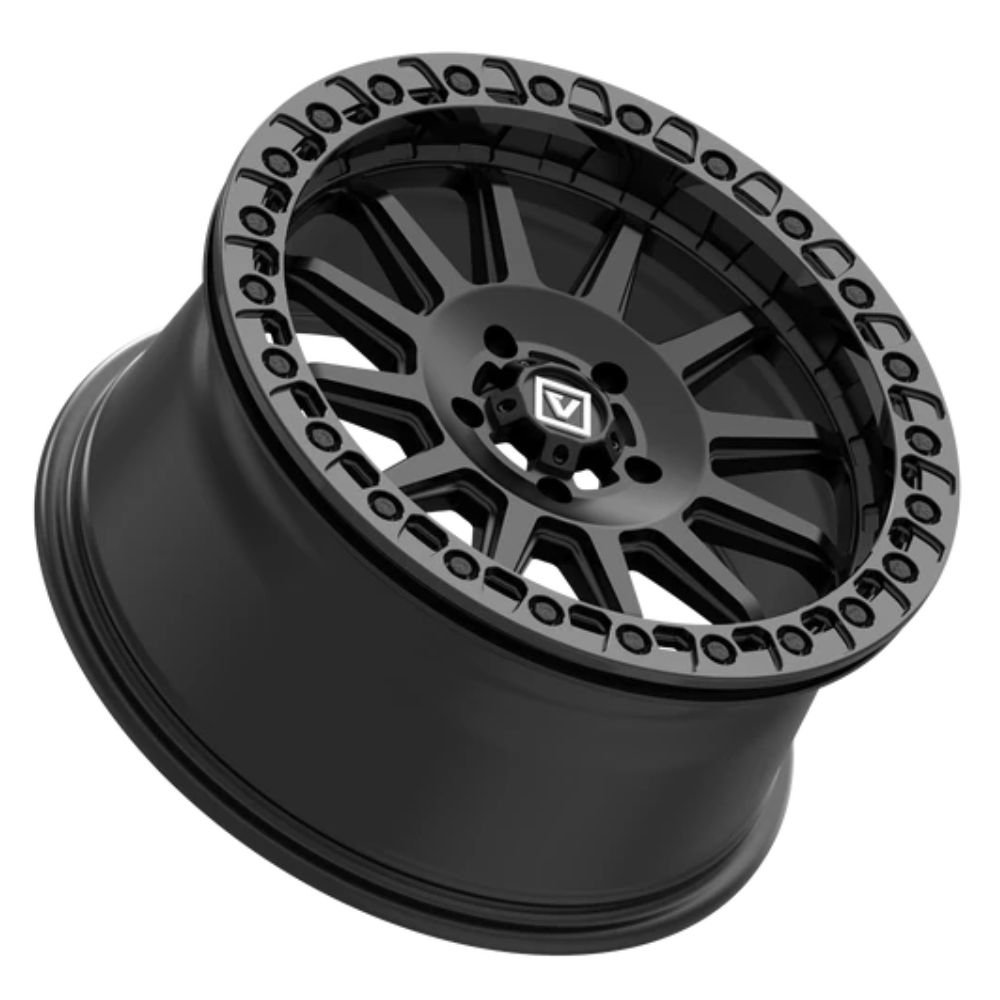

Alloy Wheel VALOR V09 BeadLock 6/139.7 15 X 7 Satin Black

Description

Overview

Equipping your high-performance side-by-side with robust, competition-ready hardware is vital for conquering extreme terrain, and the Alloy Wheel VALOR V09 BeadLock 6/139.7 15 X 7 Satin Black delivers next-generation engineering for your machine. What this product is: a professional-grade, flow-formed aluminum beadlock wheel designed specifically for modern high-horsepower utility terrain vehicles. What it does: it securely locks your tire bead to the rim under extreme lateral loads and low tire pressures, preventing unseating during aggressive cornering or rock crawling. Why it is important: factory wheels often lack the structural integrity required for heavy off-road use, risking bent barrels and lost air pressure when pushed to the limit. Which ATV systems it affects: this wheel directly integrates with your vehicle’s ATV Suspension Parts, brake assemblies, and ATV Drive Train Parts, ensuring proper weight distribution and unsprung mass efficiency across rugged trails throughout the USA, Canada, and North America.

Key Features

• Advanced flow-formed manufacturing combining traditional casting and high-pressure rolling

• Constructed from high-strength A356 aluminum with T6 heat treatment

• Precision-engineered 15×7 dimensions with optimized 6/139.7 (6×5.5) bolt pattern fitment

• Striking split twelve-spoke aggressive styling paired with a sleek satin black finish

• Durable gloss black billet beadlock ring equipped with heavy-duty hardware

• Impressive 1600 lb structural load rating built to handle punishing off-road abuse

• Ultra-lightweight profile (approx. 16.96 lbs) designed to minimize rotational weight

• Engineered and tested to exceed rigorous SAE 2530 safety specifications

• Corrosion-resistant paint and finish formulated to withstand mud, sand, and rocks

• Includes matching satin black center cap featuring an embossed contrasting logo

Benefits

Upgrading to these advanced beadlock wheels provides sweeping improvements across vehicle performance, safety, and durability. The flow-forming process creates forged-like grain structures that maximize strength while drastically cutting unnecessary weight, which enhances acceleration and suspension responsiveness. The true beadlock mechanism allows you to run lower tire psi safely to maximize traction on slick rock faces or deep sand without fear of popping a bead. Furthermore, its rugged A356-T6 aluminum build resists cracking and warping, assuring long-lasting reliability and ride quality across the most punishing trails.

Vehicle Compatibility

This 6-lug wheel is custom-engineered for modern high-performance side-by-side platforms utilizing the 6×139.7 bolt pattern.

• Compatible Manufacturers: Can-Am, and other modern 6-lug utility vehicle platforms

• Compatible Models: Can-Am Maverick R and other select high-performance 6-lug SxS platforms

• Compatible Years: 2024, 2025, 2026

• Common Applications: Desert racing, rock crawling, dune riding, and aggressive trail overlanding.

Installation Guide

Installing new beadlock wheels requires meticulous attention to torque specs and hardware maintenance.

• Tools Required: Floor jack, heavy-duty jack stands, torque wrench, metric socket set, valve core tool, and thread-locking fluid.

• Estimated Installation Time: 1 to 2 hours.

• Difficulty: Moderate (requires precise torque sequencing for beadlock ring bolts).

• Helpful Installation Tips: When mounting tires, ensure the outer tire bead sits correctly inside the beadlock channel before tightening the ring bolts. Torque all beadlock ring fasteners in a criss-cross pattern to uniform specifications (typically 12-16 ft-lbs, check manufacturer guidelines) and use a thread locker. Always verify that your vehicle’s specific aftermarket lug nuts match the tapered seat of the wheel before final torqueing.

Signs This Part Needs Replacement

While built to withstand severe impacts, extreme off-road racing or severe rock strikes can compromise wheel integrity. You should inspect or replace your wheels if you notice deep structural fractures in the aluminum barrel, severe bending or flat spots on the outer lip that prevent an airtight seal, stripped or damaged bolt holes on the beadlock ring, or excessive air leakage caused by compromised seating surfaces.

Frequently Asked Questions

What is the advantage of a beadlock wheel?

A beadlock mechanically clamps the tire bead to the outer rim edge, allowing you to drop tire air pressure significantly for increased traction without risking the tire unseating from the wheel.

What vehicles fit the 6/139.7 bolt pattern for this Valor V09?

This specific 6/139.7 (6×5.5) bolt pattern is engineered primarily for modern high-performance vehicles like the Can-Am Maverick R.

How much does the Valor V09 15×7 wheel weigh?

The 15×7 V09 weighs approximately 16.96 lbs, making it one of the lightest high-strength aluminum beadlock wheels available on the powersports market.

What is flow-forming technology?

Flow-forming combines traditional casting with high-pressure rollers that stretch and compress the aluminum barrel, resulting in increased tensile strength and a lighter overall weight.

Do I need special lug nuts for these wheels?

Yes, factory OEM lug nuts often feature incorrect seating angles or socket diameters. Ensure you use compatible aftermarket tapered lug nuts designed for aftermarket aluminum UTV wheels.

Are these wheels street legal?

While they feature robust SAE 2530 certification standards for structural safety, beadlock wheels are primarily designed for off-road utility and competition use; check local state highway vehicle regulations.

How do I maintain the satin black finish?

Clean mud and corrosive chemicals off promptly using mild soap, water, and a soft brush, avoiding harsh abrasive pads that can scratch the protective powder coat or paint.

Can I replace just the beadlock ring if it gets damaged?

Yes, Valor Offroad designs their wheels with replaceable components, allowing you to swap out damaged outer rings or hardware independently.

What tire sizes pair best with a 15×7 wheel?

This 15×7 wheel width pairs ideally with popular 32-inch and 35-inch 15-inch light truck or radial UTV tires designed for hard-pack and mixed terrain.

Where can I find matching steering or suspension components for my build?

You can explore our extensive inventory catalogs covering ATV Steering Parts and ATV Suspension Parts to complete your machine upgrade.
