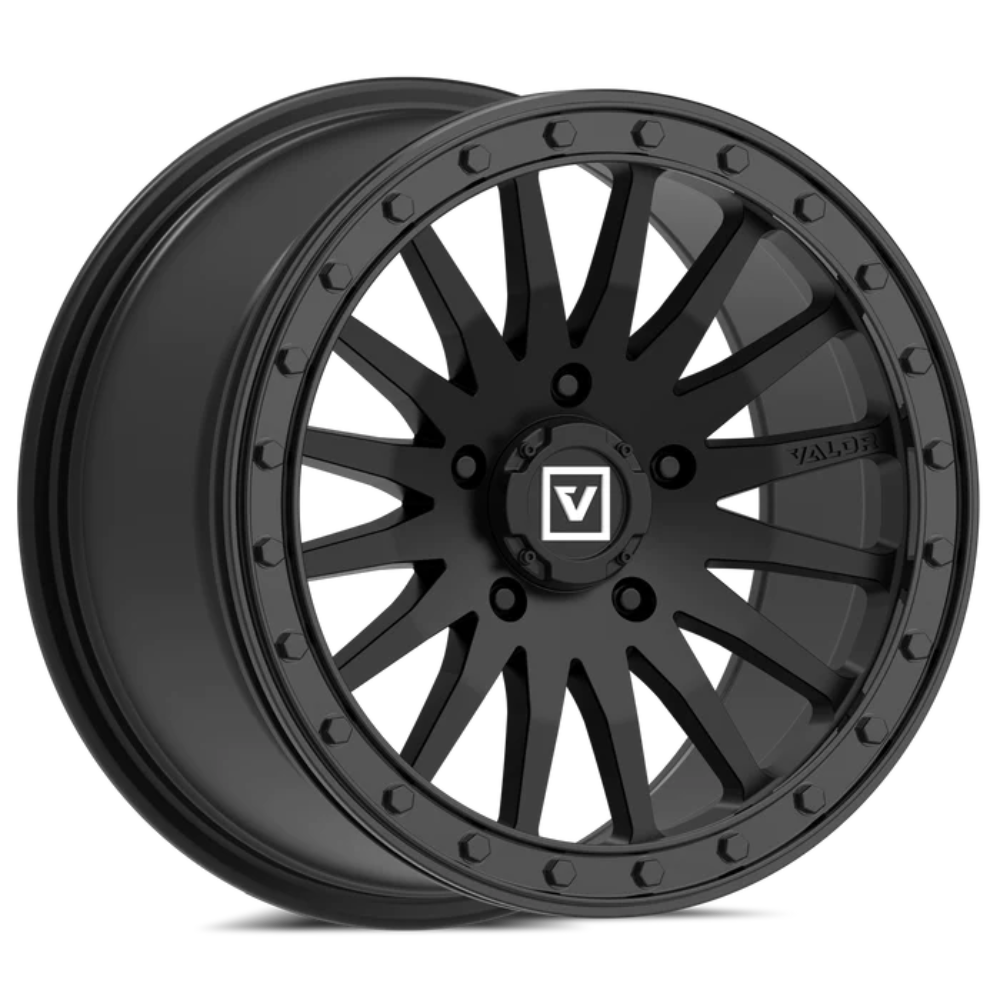

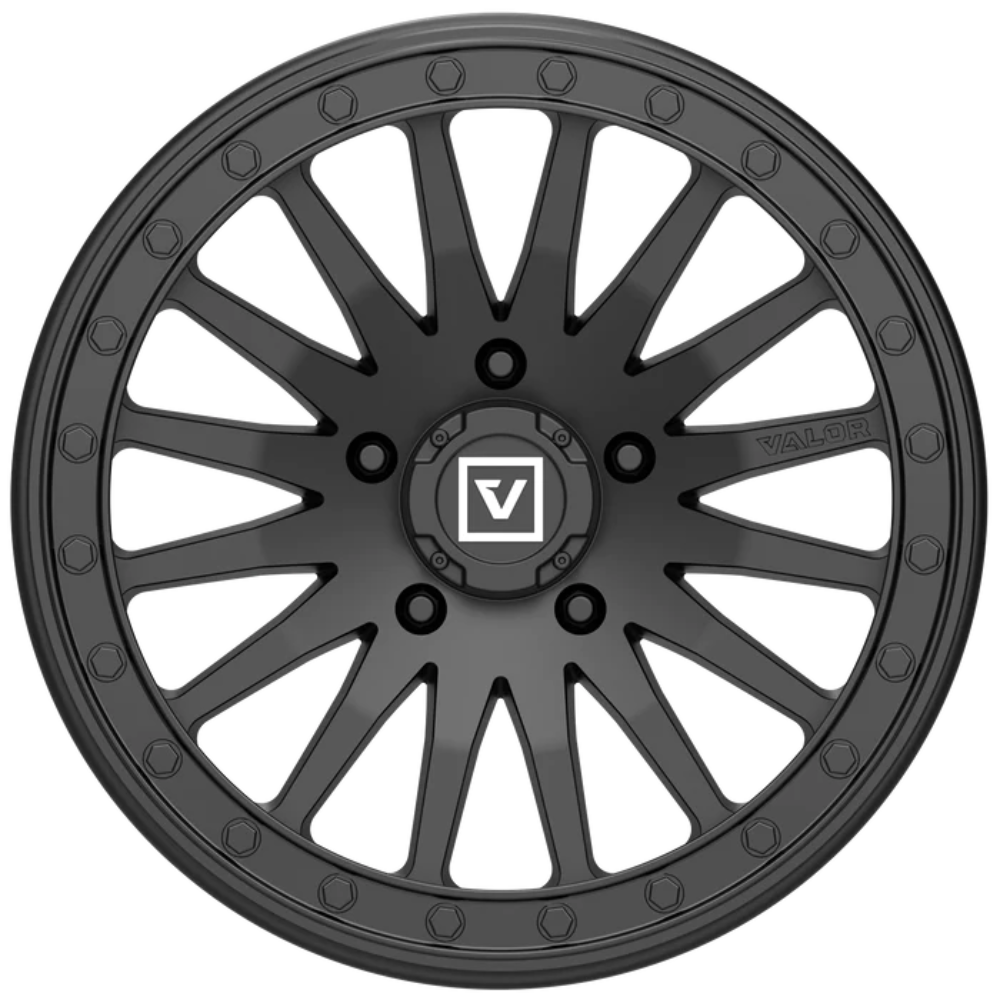

Alloy Wheel VALOR V06 BeadLock 5/114.3 15 X 8 Satin Black

Description

Overview

Conquering extreme off-road terrain requires high-strength wheel equipment capable of handling punishing impacts, and investing in the premium Alloy Wheel VALOR V06 BeadLock 15 X 8 Satin Black delivers ultimate performance and rugged styling. What this product is: a lightweight, heavy-duty single beadlock wheel engineered specifically for modern high-performance 5-lug side-by-side vehicles. What it does: it securely locks your tire bead to the rim under low inflation pressures, preventing tire slippage or unseating while navigating sharp rocks, deep sand, and aggressive ruts. Why it is important: factory wheels often lack the structural integrity and true beadlock capabilities required for aggressive overlanding and high-speed desert racing, risking catastrophic trail failures. Which ATV systems it affects: this component directly integrates with your machine’s ATV Drive Train Parts and ATV Suspension Parts, ensuring optimal rotational weight management, stability, and handling control across demanding trails in the USA, Canada, and North America.

Key Features

• Manufactured using high-grade A356 aluminum with advanced T6 heat treatment

• Equipped with a CNC-machined forged 6061 aluminum beadlock ring for extreme durability

• Striking multi-spoke satin black finish paired with a gloss black beadlock ring

• Engineered specifically for 5×114.3 (5×4.5) bolt pattern 5-lug UTV platforms

• Robust 1,350 lb. load rating designed to handle heavy utility and adventure loads

• Exceptional lightweight construction (approx. 16.72 lbs) to minimize unsprung vehicle weight

• Reinforced inner lip engineered to resist impact deformation on rocky trails

• Features 48 beadlock drill holes on the mounting surface for backup bolt security

• Deep beadlock ring channel to protect hardware from direct rock and root abrasion

• Includes a bolt-on shorty center cap featuring an embossed logo

• Meets or exceeds rigorous SAE 2530 off-road safety specifications

Benefits

Upgrading your side-by-side with these advanced beadlock wheels provides remarkable improvements across performance, reliability, and safety. The true beadlock design allows you to safely drop tire air pressures down significantly, maximizing your contact patch and traction on slick rock surfaces and loose sand. Crafted from lightweight yet immensely strong heat-treated aluminum, it reduces rotational mass to protect your ATV Drive Train Parts from premature wear while improving suspension response and ride quality. The rugged satin black finish resists corrosion and trail wear, keeping your machine looking sharp through years of harsh outdoor exploration.

Vehicle Compatibility

This high-performance beadlock wheel is custom-engineered for modern 5-lug off-road platforms.

• Compatible Manufacturers: Polaris, Kawasaki, CF-Moto

• Compatible Models: Polaris RZR Pro R, Polaris RZR Turbo R, Polaris Xpedition, Polaris Ranger XD 1500, Kawasaki Teryx 4/5 H2, CF-Moto UFORCE U10 Pro / ZFORCE Z10

• Compatible Years: 2022, 2023, 2024, 2025, 2026

• Common Applications: Rock crawling, desert dune running, multi-day overlanding expeditions, and high-speed trail riding.

Installation Guide

Mounting beadlock wheels requires meticulous attention to detail and proper hardware torque sequences to ensure safety.

• Tools Required: Torque wrench, metric socket set, valve core tool, tire bead clamp, anti-seize lubricant, and safety glasses.

• Estimated Installation Time: 1 to 2 hours (plus professional tire mounting).

• Difficulty: Moderate to Advanced (professional tire shop mounting recommended for the beadlock ring assembly).

• Helpful Installation Tips: Apply a light coat of anti-seize to the beadlock bolt threads and follow a star pattern torque sequence to evenly clamp the ring down to manufacturer specifications. Check and re-torque all beadlock bolts after your initial test ride and periodically thereafter as part of standard maintenance.

Signs This Part Needs Replacement

While built to withstand severe off-road abuse, wheels can occasionally suffer from structural damage during severe impacts. You should inspect or replace your wheels if you notice deep structural cracks in the aluminum barrel, a bent inner or outer lip causing persistent air leaks, stripped beadlock bolt holes that fail to hold proper torque, or severe scraping and distortion that compromises wheel balancing.

Frequently Asked Questions

What is the bolt pattern of the Valor V06 15×8 wheel?

This specific wheel features a 5×114.3 (also known as 5×4.5) bolt pattern designed explicitly for modern 5-lug UTV platforms.

Do I need special lug nuts for Valor beadlock wheels?

Yes, depending on your vehicle model, factory lug nuts may not fit the tapered pocket holes of aftermarket wheels; a compatible aftermarket spline or hex lug nut installation kit is recommended.

What is the advantage of a 15×8 UTV beadlock wheel?

An 8-inch wide wheel provides an optimal profile for modern high-performance side-by-side tires, giving you a wider footprint and better sidewall stability at lower pressures.

Can I run these wheels on the street?

While these wheels exceed SAE 2530 off-road structural standards, true beadlock wheels are primarily designed for off-road use; check your local state or regional laws regarding street legality.

How do I torque the beadlock ring bolts?

Always use a calibrated torque wrench, working in a criss-cross (star) pattern across the ring to ensure even clamping pressure on the tire bead.

What maintenance do beadlock rings require?

You should periodically inspect the beadlock bolts with a torque wrench to ensure they haven’t loosened from trail vibrations and check for rock damage on the outer ring channel.

Are these wheels heavy?

Despite their heavy-duty load rating and reinforced construction, Valor uses an optimized A356 aluminum casting process to keep the V06 remarkably lightweight at roughly 16.72 lbs.

Will these wheels fit my factory tires?

These 15-inch wheels require matching 15-inch off-road UTV tires; they will not fit smaller 14-inch or 12-inch tires.

What is the load rating of the Valor V06?

The V06 features a heavy-duty 1,350 lb. load rating per wheel, making it ideal for heavily loaded overlanding rigs and multi-passenger side-by-sides.

Where can I find replacement hardware or rings?

You can source matching replacement components, center caps, and accessories through our extensive catalog of off-road parts at ATVPartsOnline.co.
