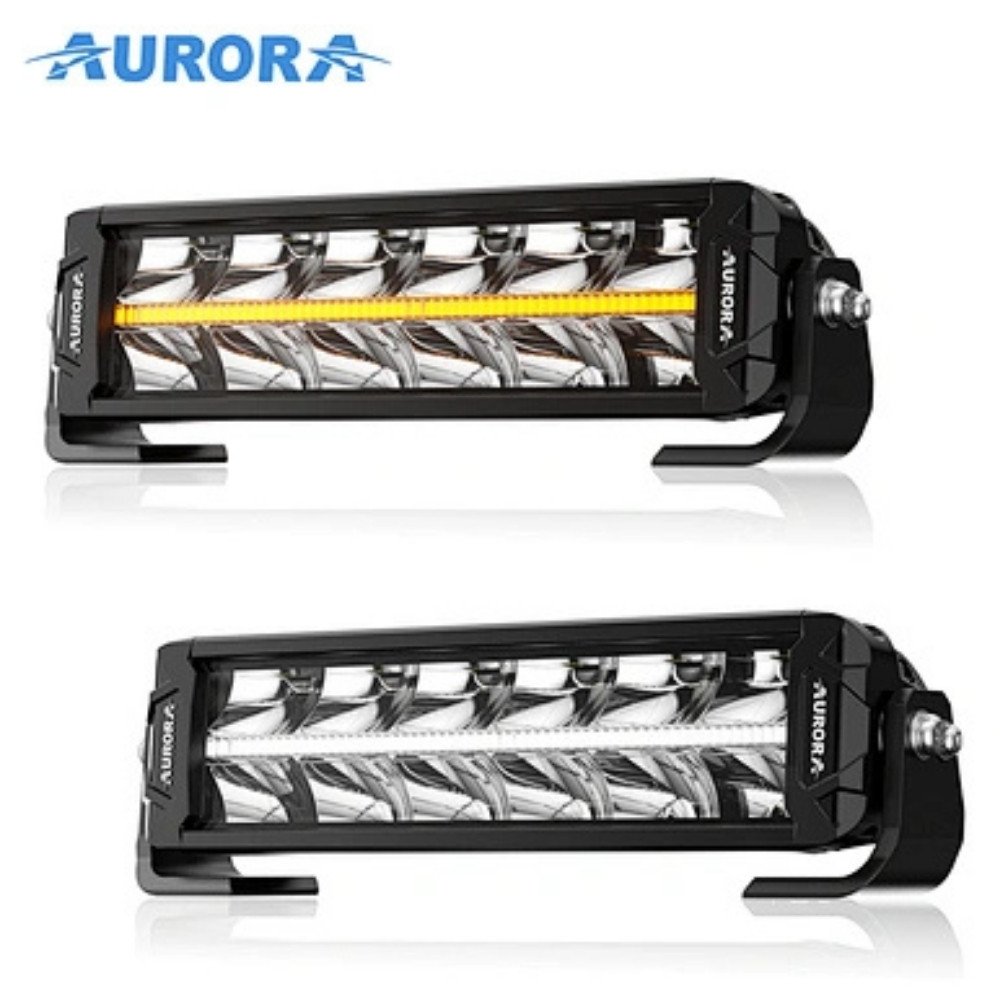

10″ LED Light Bar 180W – Dual Row Combo Beam – Amber/White Backlights – WH Inc – Aurora

Description

Overview

When traversing dark mountain trails, dusty agricultural fields, or unpredictable winter paths, factory headlights often fail to provide the necessary range and clarity. The 10 Inch 180W ATV LED Light Bar by Aurora (distributed by WH Inc) is an engineered secondary lighting solution designed to significantly increase trail safety and forward illumination. Operating with a high-output dual-row configuration, this compact light bar delivers intense projection while maintaining an efficient footprint that mounts perfectly to ATV handlebars, front bumpers, or cargo racks.

This specific system is highly valued for its dual-color versatility. It functions not only as a primary spotlight and floodlight combination but also features selectable Amber and White backlighting. The integrated amber backlights penetrate heavy dust, dense fog, and rain by minimizing backscatter glare, while the white backlighting provides a clean daytime running light (DRL) or accent visual. Operating within your ATV’s 12V DC auxiliary electrical system, this robust light bar ensures that you can identify trail hazards early, safely protecting your steering and front suspension components from unseen obstacles.

Key Features

• Powerful Dual Row Performance: Features high-output premium LED chips arranged in a dual-row setup to maximize lumen concentration in a compact $10\text{ inch}$ frame.

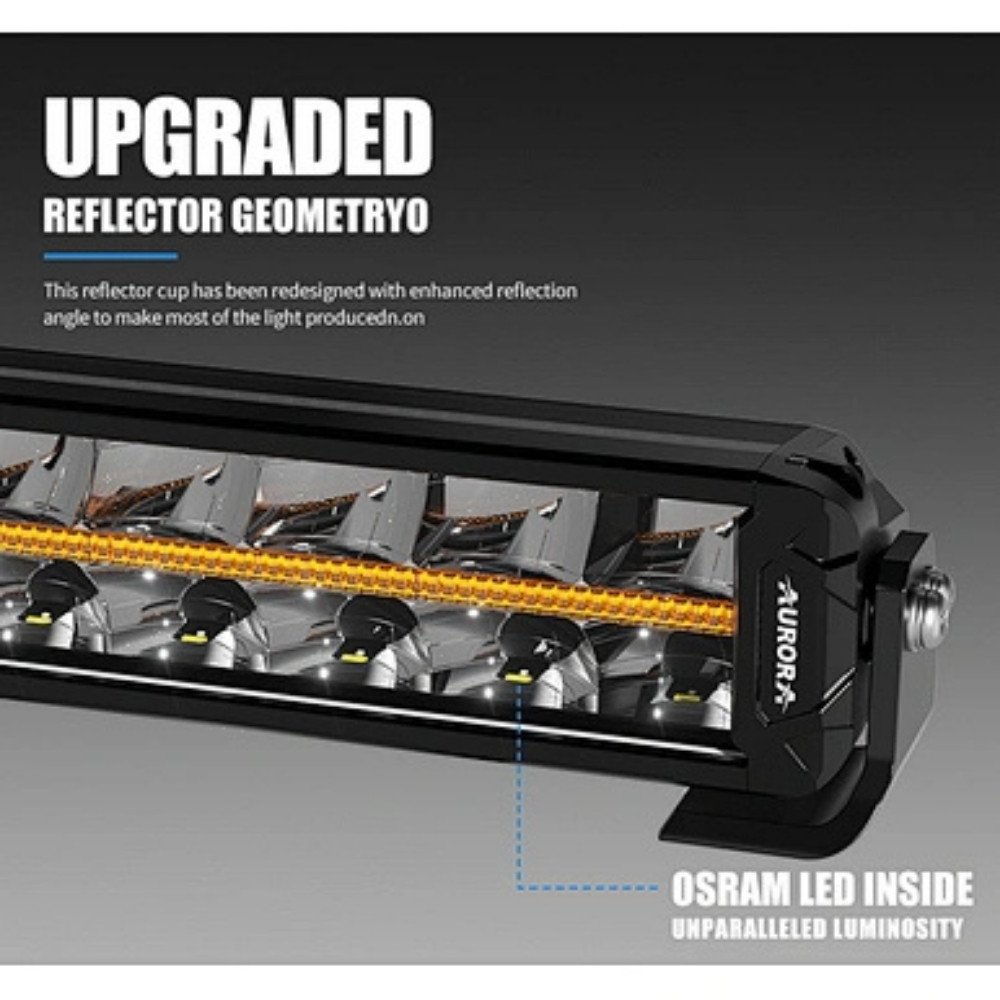

• True Combo Beam Pattern: Uses a hybrid optical setup with spot reflectors in the center for deep distance projection and flood reflectors on the sides for wide-angle ditch visibility.

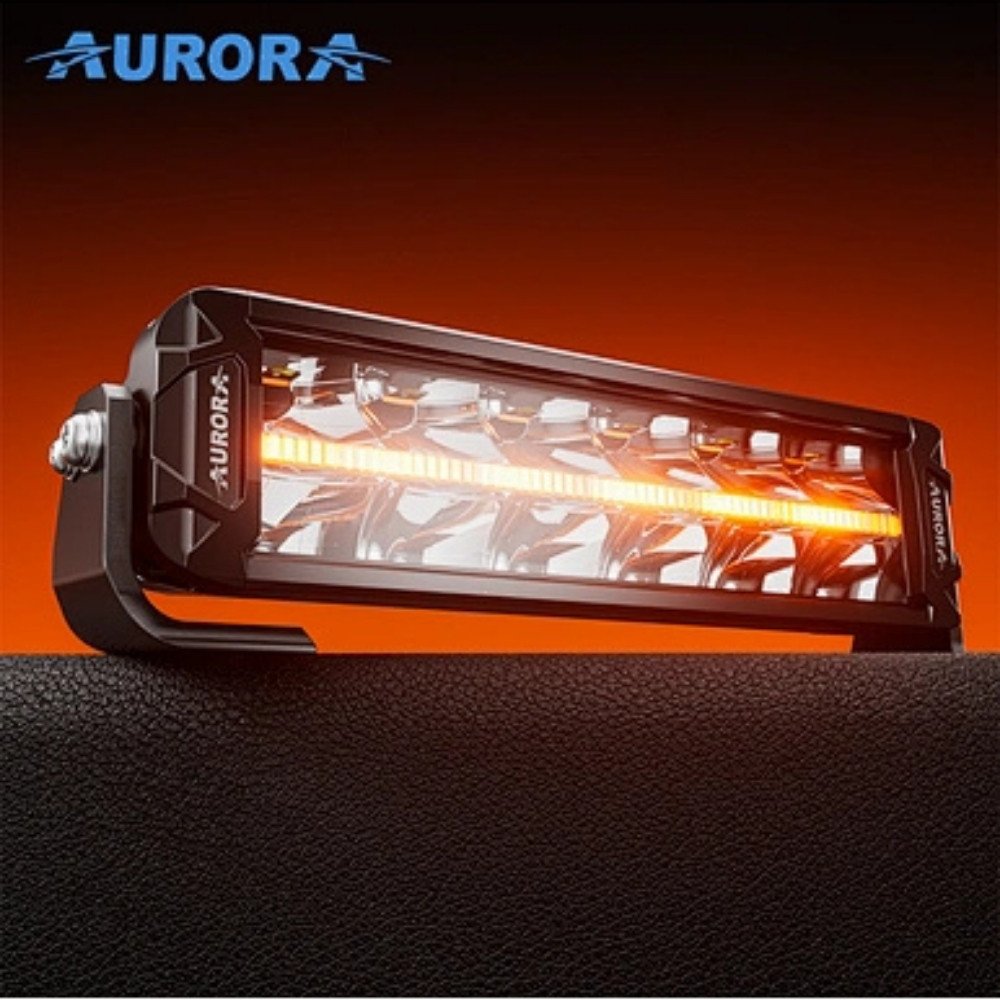

• Versatile Dual-Color Backlighting: Selectable Amber or White backlights allow you to adapt instantly to weather conditions (dust, snow, rain, or clear night).

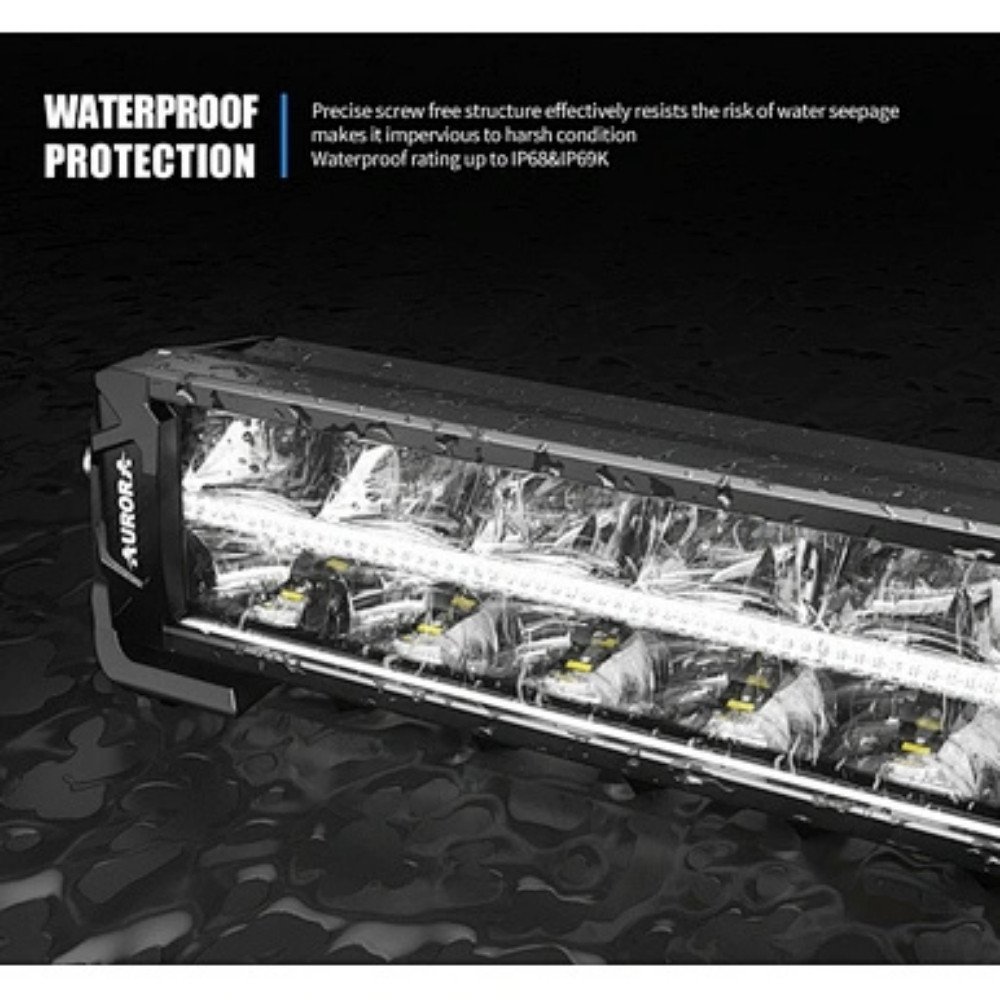

• High Dust & Water Resistance: Rated to IP68 and IP69K standards to survive complete high-pressure washdowns, deep mud crossings, and complete submersion.

• Integrated Military Breather: Equipped with an active Gore-Tex style military-grade breather valve that prevents internal pressure changes and condensation buildup inside the lens.

• High-Tensile GE Lexan Lens: Constructed with an impact-resistant optical lens that is up to 300 times stronger than traditional glass, resisting gravel chips and low-hanging branch strikes.

• Premium DuPont Powder Coating: Finished with heavy-duty outdoor DuPont paint that resists UV oxidation, saltwater corrosion, and harsh cleaning agents.

• Advanced Thermal Management: Engineered with deeply-ribbed 6063 aluminum heat sinks that accelerate heat dissipation to extend LED lifespan beyond 50,000 hours.

• Complete Wiring Harness Included: Package contains a multi-switch heavy-duty harness with an in-line fuse, $40\text{A}$ relay, and waterproof Deutsch connectors.

• No-Interference PCBA Circuitry: Designed with advanced EMI (electromagnetic interference) shielding to prevent static or disruption to your ATV’s digital displays or GPS navigation.

• Versatile Operating Voltage: Wide 9V to 36V DC input range accommodates standard battery systems while offering built-in over-voltage and under-voltage protection.

Benefits

Superior Trail Safety & Object Identification

The hybrid combo optics on this $10\text{ inch}$ bar illuminate both the trail ahead and the trailside ditches. This immediate visual feedback helps riders avoid rocks, low-lying branches, and wildlife, protecting critical ATV steering parts and front suspension setups from high-speed impact damage.

All-Weather Adaptability

By switching to the warm amber backlighting mode, the light cuts directly through suspended trail dust, mist, and blizzard conditions without reflecting blinding white light back into your eyes. This feature reduces eye strain and helps you maintain focus during long evening rides.

Exceptional Off-Road Durability

Traditional lights often fail when subject to constant heavy trail vibration. Aurora’s interior design features heavy-duty PCB mounts, robust lead solders, and military-grade sealing. The housing undergoes strict saline spray, thermal shock, and vibration testing to ensure it never flickers or fails when you need it most.

Product Specifications

Vehicle Compatibility

This $10\text{ inch}$ auxiliary light bar is engineered for universal compatibility across a wide range of powersports frames. It is typically mounted on the front handlebar cluster, center brush guards, front cargo racks, or UTV roll cages.

• Polaris: Sportsman 450, Sportsman 570, Sportsman 850, XP 1000, Scrambler 850 / 1000 XP

• Can-Am: Outlander 450/570/650, Outlander 850, Outlander 1000R, Renegade Series

• Yamaha: Grizzly 700, Kodiak 450, Kodiak 700, Raptor 700R (Bumper Mount), YFZ450R

• Honda: Rancher 420, Foreman 520, Rubicon, Rincon 680

• Suzuki: KingQuad 400, KingQuad 500, KingQuad 750

• Kawasaki: Brute Force 300, Brute Force 750

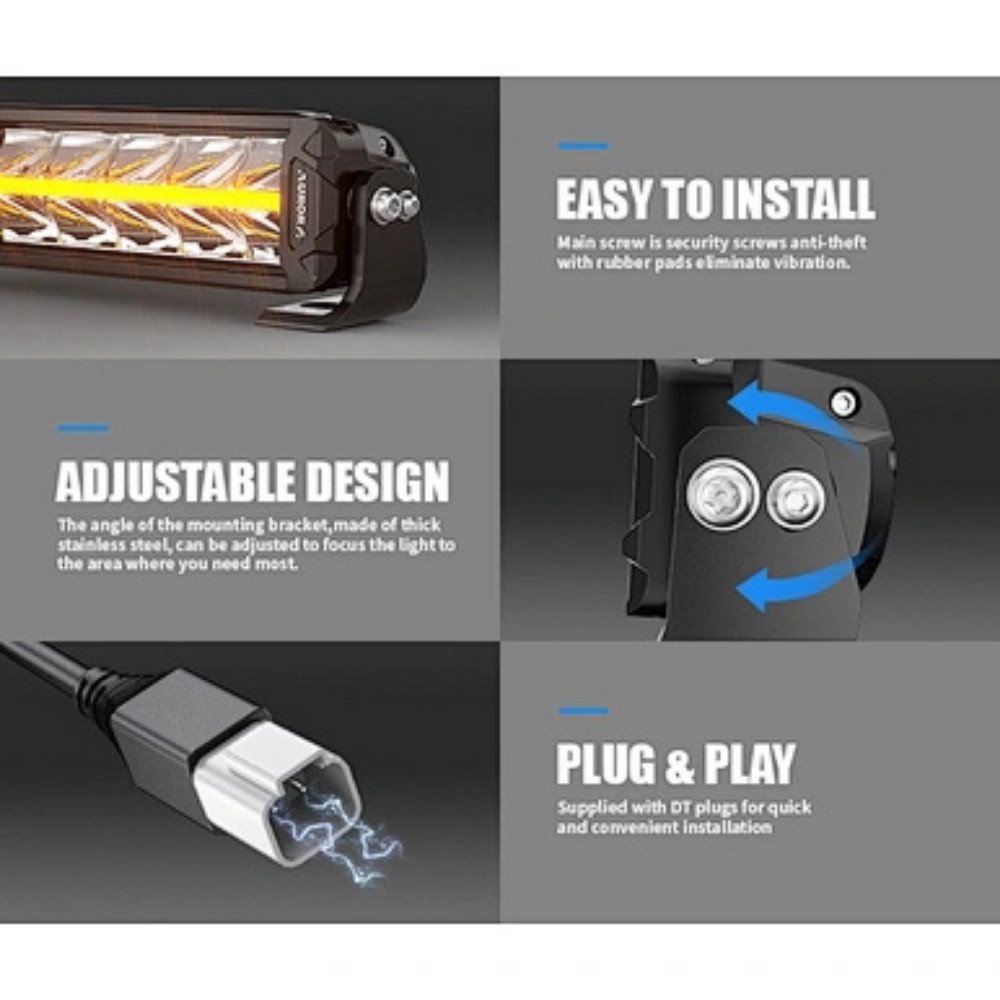

Installation Guide

Installing this dual-color LED light bar takes approximately 30 to 45 minutes and requires basic hand tools.

Tools Required:

• Metric socket set (typically $10\text{ mm}$ and $13\text{ mm}$)

• Metric Allen/Hex key set

• Zip-ties or wire routing loom

• Electrical tape or heat-shrink tubing

Signs This Part Needs Replacement

• Moisture Under Lens: Internal fogging or visible droplets mean the seal has failed or the breather valve is blocked, which can short-circuit internal boards.

• Flickering or Dimming: Weak or inconsistent light output usually points to damaged internal PCB solders or a failing electrical connection.

• Unusable Backlight Modes: If the amber or white backlight functions stop operating while the main high-beam works, the internal secondary circuitry has been damaged.

• Physical Housing Damage: Heavy rollovers or direct hits that crack the aluminum housing or break the mounting tabs.

Frequently Asked Questions

Can I run the Amber backlight and the main White beam at the same time?

Yes. The multi-switch harness allows you to run the backlights independently or together with the main high-output combo beam to match your riding style.

Is the mounting hardware rust-proof?

Yes, the included mounting brackets and nuts are built from premium corrosion-resistant stainless steel to handle wet trail conditions.

Does this light bar drain the ATV battery quickly?

No. Despite outputting 180W of equivalent halogen power, the LED circuitry is highly efficient and pulls minimal amperage, making it safe for standard ATV charging systems.

What does the military breather actually do?

The breather acts as a pressure relief valve. When the light heats up and cools down, it safely vents air while blocking moisture, stopping water from getting sucked past the seals.

Will this light bar fit on a 1″ bumper tube?

Yes, but you will need standard tubular bar clamp mounts (sold separately) to attach the light brackets to round tubing.

What is the advantage of the combo beam?

The combo beam uses specialized optics: spot lights in the middle project light far down the trail, while wide flood reflectors illuminate the sides to help you spot trail turns and obstacles.

Does this light generate radio interference?

No. The high-quality PCBA board is designed with internal shielding to prevent electromagnetic interference (EMI) with your ATV displays, GPS, or communications.

Is the lens scratch-resistant?

Yes, the premium GE Lexan lens is treated with a durable outer coating designed to resist sand pitting, mud scratching, and UV yellowing.
